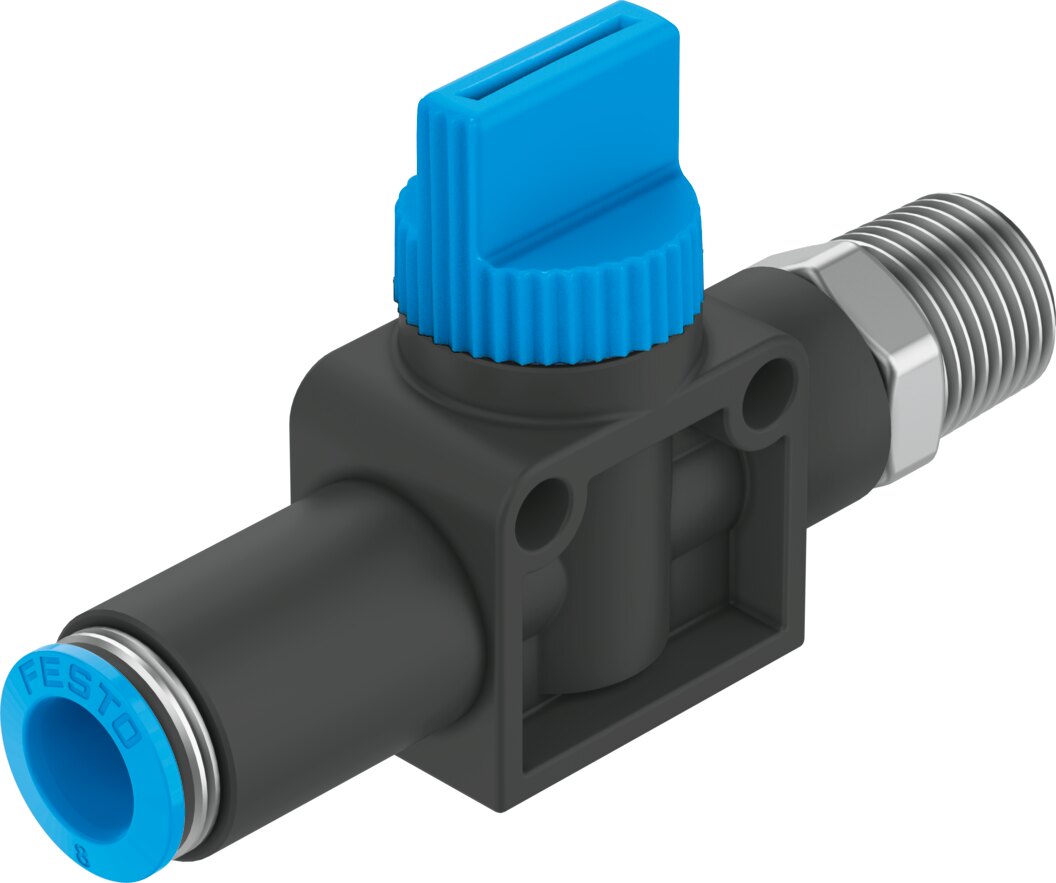

Festo HE-3-1/8-QS-6 Shut-off valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HE-3-1/8-QS-6 — Shut-off valve, ball valves and on off valves. valve function 3/2-way, double solenoid; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 3.2 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 153479
- Type code
- HE-3-1/8-QS-6
- EAN / GTIN
- 4052568034955
- Product category
- Ball valves and on off valves
- Valve function
- 3/2-way, double solenoid
- Selection of additional functions
- With exhaust function
- Pneumatic connection, port 1
- R1/8
- Pneumatic connection, port 2
- QS-6
- Type of actuation
- Manual
- Type of mounting
- Direct mounting via through-hole, Direct mounting via thread
- Standard nominal flow rate (standardised to DIN 1343)
- 279.9 l/min
- Nominal size
- 3.2 mm
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Ambient temperature
- 0 ... 60 °C
- Material housing
- Reinforced PBT
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Exhaust-air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Design
- Piston gate valve
- Type of piloting
- Direct
- Flow direction
- Non-reversible
- Symbol
- 00997329
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Media temperature
- 0 ... 60 °C
- Product weight
- 29 g
- Pneumatic connection, port 3
- Not ducted
- Material screwed plug
- Nickel-plated brass
- Material seals
- NBR
- Product type
- Pneumatic flow valves
- Product group
- Pneumatics
- Outer hose diameter
- 6 mm
- Carbon footprint (EPD)
- 0.3091 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568034955
- MPN 153479
