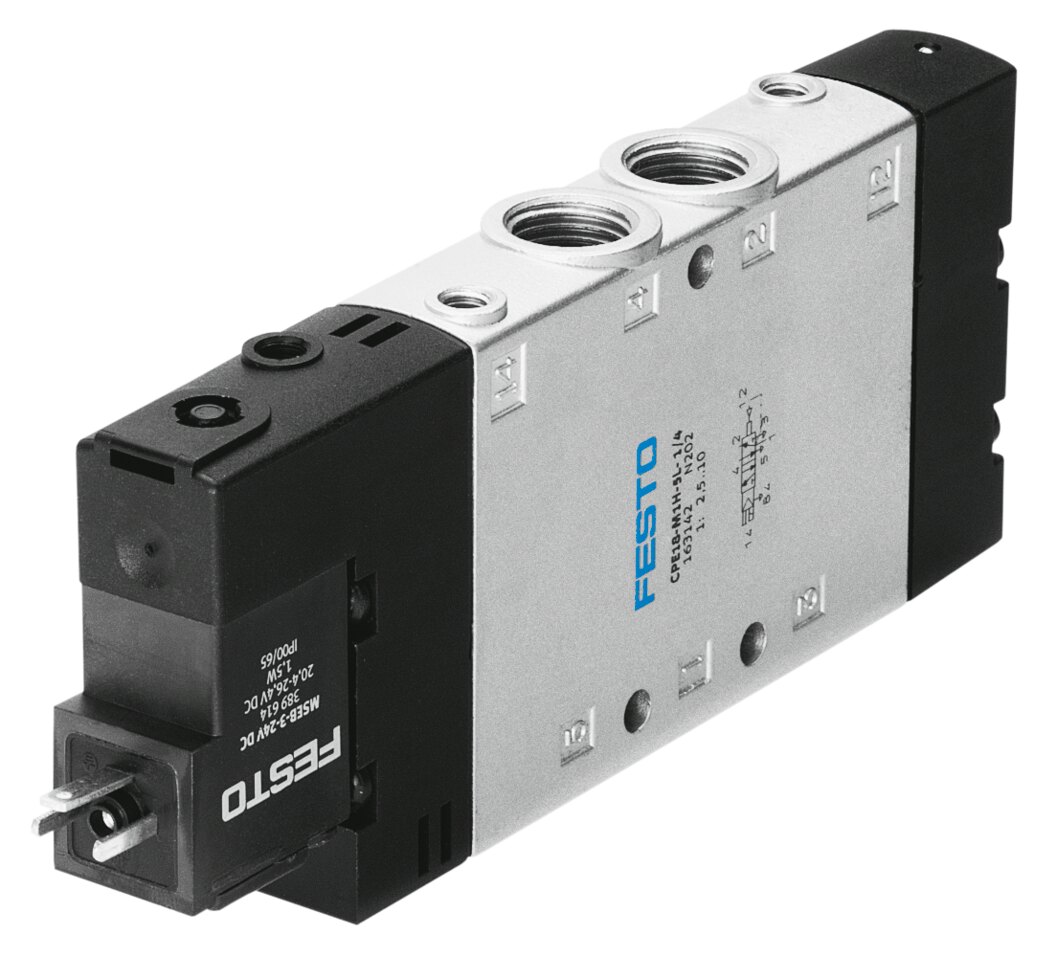

Festo CPE18-M1H-5L-1/4 Solenoid valve

Festo CPE18-M1H-5L-1/4 — Solenoid valve, valves and valve terminals. valve function 5/2-way, single solenoid; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 8 mm.

Manufacturer part number (MPN)

163142

Type code

CPE18-M1H-5L-1/4

EAN / GTIN

4052568133078

Product category

Valves and valve terminals

Valve function

5/2-way, single solenoid

Type of actuation

Electrical

Construction width

18 mm

Standard nominal flow rate (standardised to DIN 1343)

1500 l/min

pneumatic working port

G1/4

Operating voltage

24 V DC

Operating pressure

0.25 ... 1 MPa (2.5 ... 10 bar)

Design

Piston gate valve

Type of reset

Pneumatic spring

Approval

c UL us - Recognised (Oil)

Maritime classification

See certificate

Certificate issuing authority

UL MH19482

Degree of protection

IP65, with plug socket, To IEC 60529

Nominal size

8 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting via accessory, Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991023

Valve position code

Label holder

lap

Overlap

Switching time off

20 ms

Switching time on

26 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

3300 µs

Max. negative test pulse with 1 signal

3100 µs

Characteristic coil data

24 V DC: 1.5 W

Permissible voltage fluctuations

-15% / +10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Ambient temperature

-5 ... 50 °C

Product weight

220 g

Electrical connection

Type C

Type of mounting

With through-hole

Pilot exhaust port 82

M5

Pilot exhaust port 84

M5

Pilot air port 12

M5

Pilot air port 14

M5

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Pneumatic connection, port 3

G1/4

Pneumatic connection, port 4

G1/4

Pneumatic connection, port 5

G1/4

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

G1/4"

Activation

El

Return

Spring

Carbon footprint (EPD)

4.5789 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
