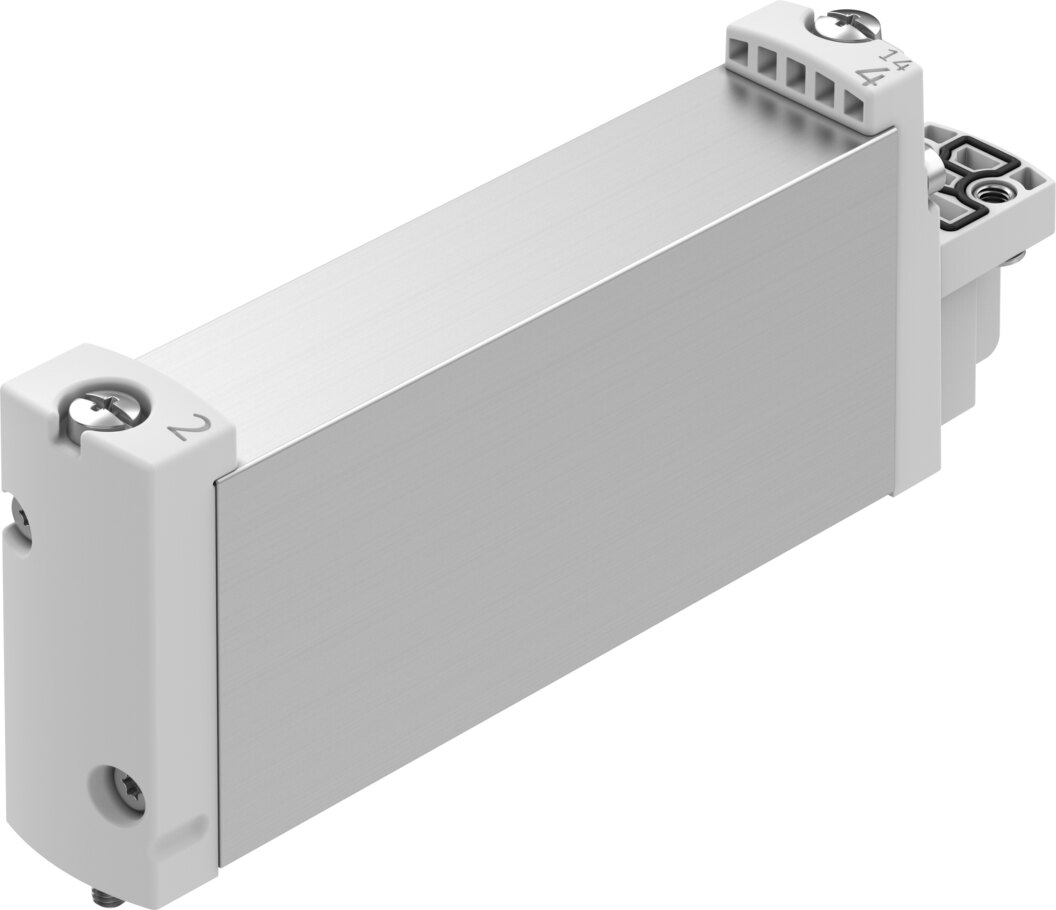

Festo VUVG-B18-M52-RZ-F-P1 Solenoid valve

Festo VUVG-B18-M52-RZ-F-P1 — Solenoid valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 6.9 mm.

Manufacturer part number (MPN)

8033565 Type code: VUVG-B18-M52-RZ-F-P1 EAN / GTIN: 4052568553074 Product category: Universal directional control valves Valve function: 5/2-way, single solenoid Type of actuation: Electrical Valve size: 18 mm Standard nominal flow rate (standardised to DIN 1343): 1000 l/min pneumatic working port: Flange Operating pressure: -0.09 ... 1 MPa (-0.9 ... 10 bar) Design: Piston gate valve Type of reset: Mechanical spring Approval: c UL us - Recognised (Oil) CE mark (see declaration of conformity): To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive UKCA marking (see declaration of conformity): To UK RoHS instructions, To UK regulations for electrical equipment Certificate issuing authority: UL MH19482 Degree of protection: IP65, With electric pilot valve and plug socket Nominal size: 6.9 mm Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Type of piloting: Piloted Pilot air supply: External Symbol: 00992849 lap: Indeterminate overlap Pilot pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) Switching time off: 22 ms Switching time on: 16 ms Duty cycle: 100% Max. positive test pulse with 0 signal: 700 µs Max. negative test pulse with 1 signal: 900 µs Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1 Media temperature: -5 ... 60 °C Ambient temperature: -5 ... 60 °C Product weight: 142 g Electrical connection: Via electric pilot valve Type of mounting: On manifold rail Pilot control interface: To ISO 15218 material seals: HNBR, NBR material housing: Wrought aluminium alloy Product type: Pneumatic solenoid valves Product group: Pneumatics Activation: El Return: mechanical spring Carbon footprint (EPD): 3.2931 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 84812090 HS code: 8481.20

HS Code

8481.20

• EAN 4052568553074
• MPN 8033565
