Festo VUVG-B18-M52-RZT-F-1T1L Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-B18-M52-RZT-F-1T1L — Solenoid valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8004891
- Type code
- VUVG-B18-M52-RZT-F-1T1L
- EAN / GTIN
- 4052568277567
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Valve size
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 950 l/min
- pneumatic working port
- Flange
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring, Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65, IP67
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00992849
- lap
- Indeterminate overlap
- Signal status display
- LED
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 35 ms
- Switching time on
- 20 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 22 V DC: 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 138 g
- Electrical connection
- Via E-box
- Type of mounting
- On manifold rail
- Material seals
- HNBR, NBR
- Material housing
- Wrought aluminium alloy
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 2.0698 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568277567
- MPN 8004891
Product Documentation
More from Festo
Festo
Festo VUVG-L10-M52-MZT-M7-1H2L-F1A Solenoid valve
8164359
Festo
Festo DAMS-K-V1-63-V-R3 Swivel flange
1555443
Festo
Festo VABM-B10-25-G12-5-P53 Common supply manifold
8026222
Festo

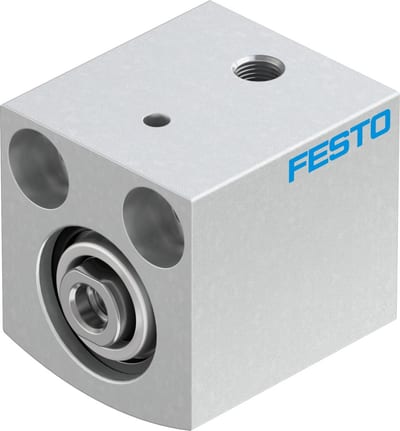

Festo AEVC Short stroke cylinder - 16mm, M5, 10mm, AEVC-16-10-I-P
