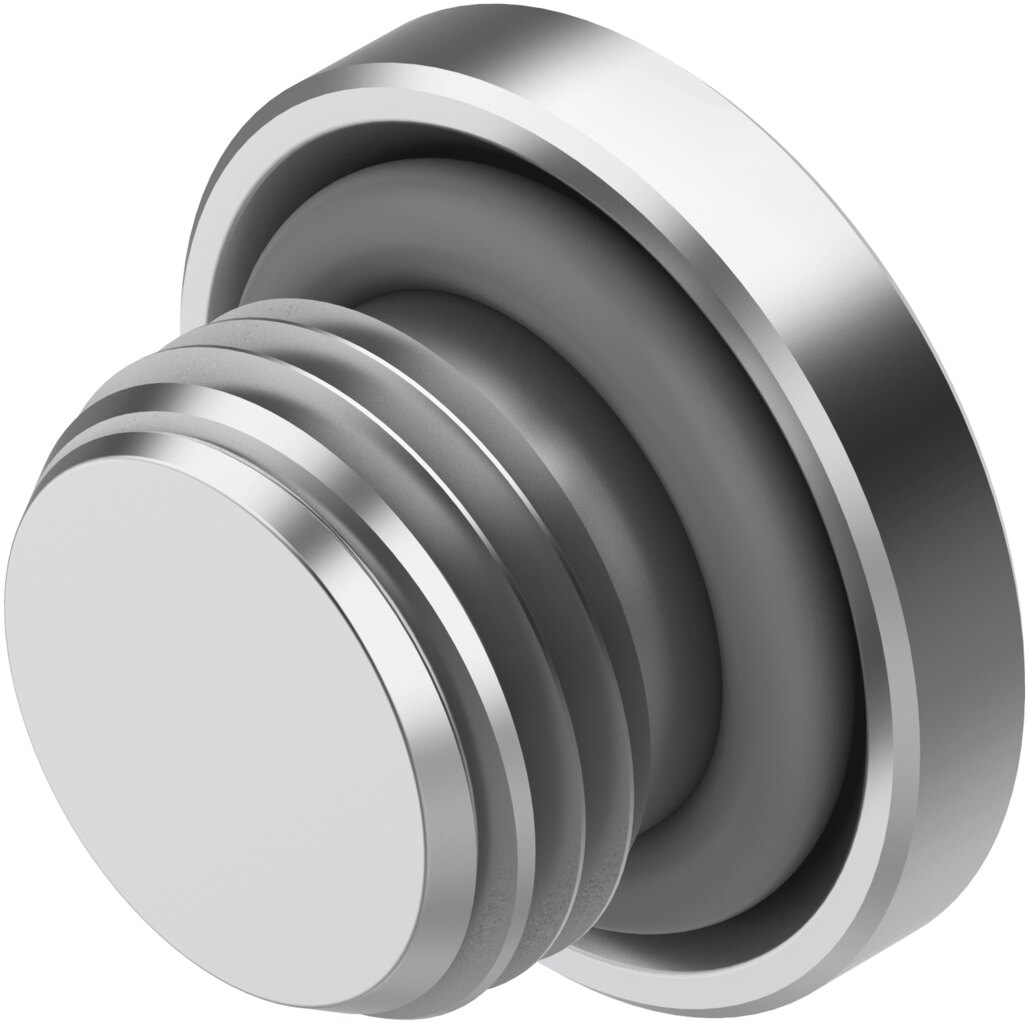

Festo NPQR-BK-G18 Plug screw
Pricing
Request a quote
We reply within 24 hours
Overview
Festo NPQR-BK-G18 Plug screw (part number 8085673) is listed under Pneumatics / Pneumatic Components. Type code: NPQR-BK-G18; Product category: Push-in fittings; Size: Standard; Type of seal on screwed plug: Sealing ring; Mounting position: Any; Design: Plug screw.
Technical Specifications
- Manufacturer part number (MPN)
- 8085673
- Type code
- NPQR-BK-G18
- EAN / GTIN
- 4052568451134
- Product category
- Push-in fittings
- Size
- Standard
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Plug screw
- Size of pack
- 1
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 1.6 MPa (-0.95 ... 16 bar; -13.775 ... 232 psi)
- Certificate issuing authority
- NSF C0556009
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 4 - Very high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Element installed statically, no meaningful evaluation possible according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity, NSF/ANSI 169
- Ambient temperature
- -20 ... 150 °C
- Nominal torque
- 6 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 4 g
- Type of mounting
- Internal hexagon A/F 5
- Pneumatic connection, port 1
- Male thread G1/8
- Material housing
- High-alloy stainless steel
- Material thread seal
- Fluoro rubber
- Product type
- Push-in connectors
- Product group
- Pneumatics
- Thread
- 1/8"
- Carbon footprint (EPD)
- 0.0456 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072910
- HS code
- 7307.29
Standards & Compliance
- HS Code
- 7307.29
Cross References
- EAN 4052568451134
- MPN 8085673
