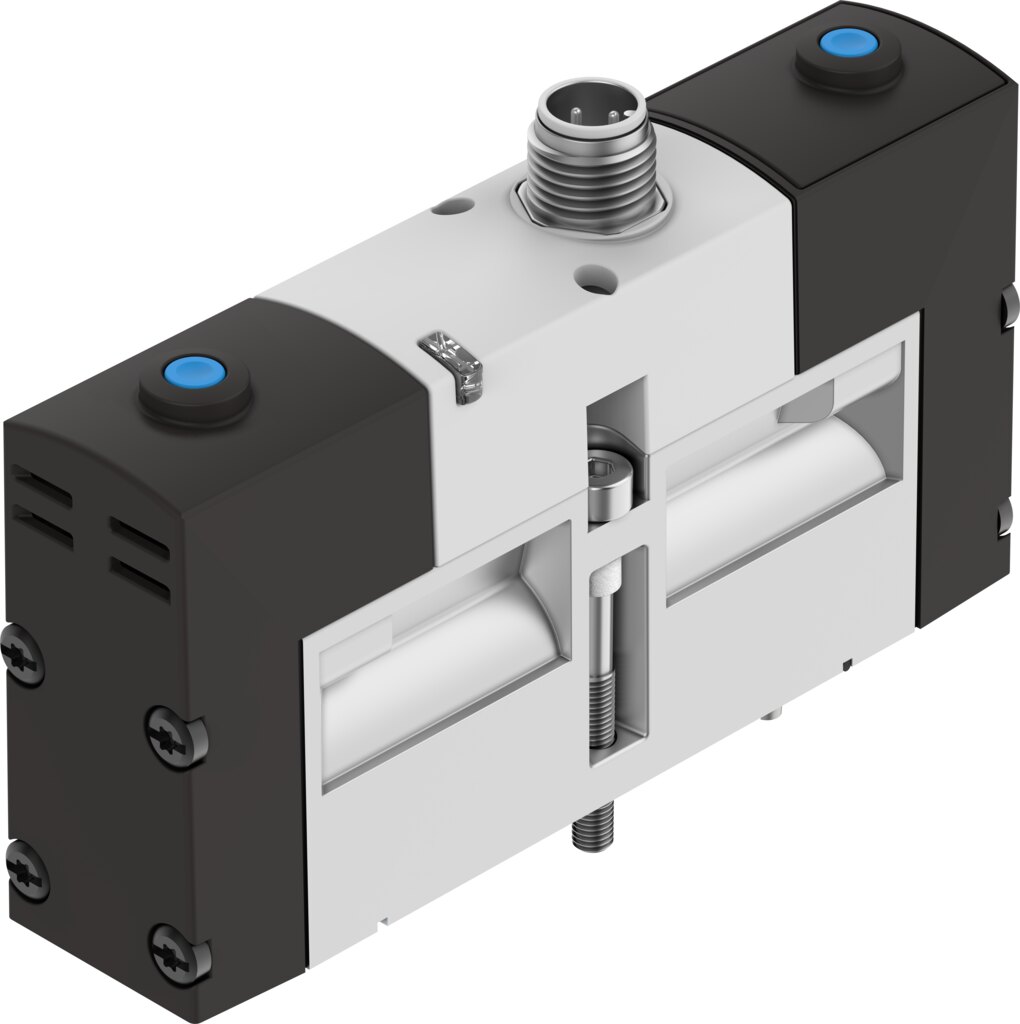

Festo VSVA-B-B52-H-A1-1R5L Solenoid valve

Festo VSVA-B-B52-H-A1-1R5L — Solenoid valve, standards-based directional control valves. valve function 5/2-way, double solenoid; operating pressure 0.3. 0.8 MPa (3. 8 bar); conforms to standard ISO 15407-1.

Manufacturer part number (MPN)

534557

Type code

VSVA-B-B52-H-A1-1R5L

EAN / GTIN

4052568006976

Product category

Standards-based directional control valves

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Construction width

26 mm

Standard nominal flow rate (standardised to DIN 1343)

1100 l/min

pneumatic working port

Sub-base size 26 mm to ISO 15407-1

Operating voltage

24 V DC

Operating pressure

0.3 ... 0.8 MPa (3 ... 8 bar)

Design

Piston gate valve

Approval

RCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU EMC Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions

Degree of protection

IP65, NEMA 4

Nominal size

9 mm

Grid dimension

27 mm

Exhaust-air function

Can be throttled, Via throttle plate, Via individual sub-base

Sealing principle

Soft

Mounting position

Any

Conforms to standard

ISO 15407-1

Manual override

Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991005

lap

Overlap

Reverse polarity protection

For all electrical connections

Additional functions

Safety shut-off

Signal status display

LED

Flow rate of valve

1400 l/min

Flow rate of valve on individual sub-base

1100 l/min

Flow rate of pneumatically interlinked valve

1100 l/min

Switching time reversal

15 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

400 µs

Max. negative test pulse with 1 signal

100 µs

Nominal pick-up current per solenoid coil

110 mA to 20 ms

Nominal current with current reduction

30 mA after 20 ms

Characteristic coil data

24 V DC: low-current phase 1.0 W, high-current phase 2.4 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Relative air humidity

0 - 90%

Protection against direct and indirect contact

PELV

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 50 °C

Max. tightening torque for valve mounting

1.8 ... 2.2 Nm

Product weight

270 g

Electrical connection

3-pin, M12x1, Central plug, Round design

Type of mounting

On sub-base, Via through-hole and screw

Material seals

Fluoro rubber, HNBR, NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Activation

El

Temperature max

50 °C

Working pressure

-8 bar

Carbon footprint (EPD)

5.6163 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
