Festo

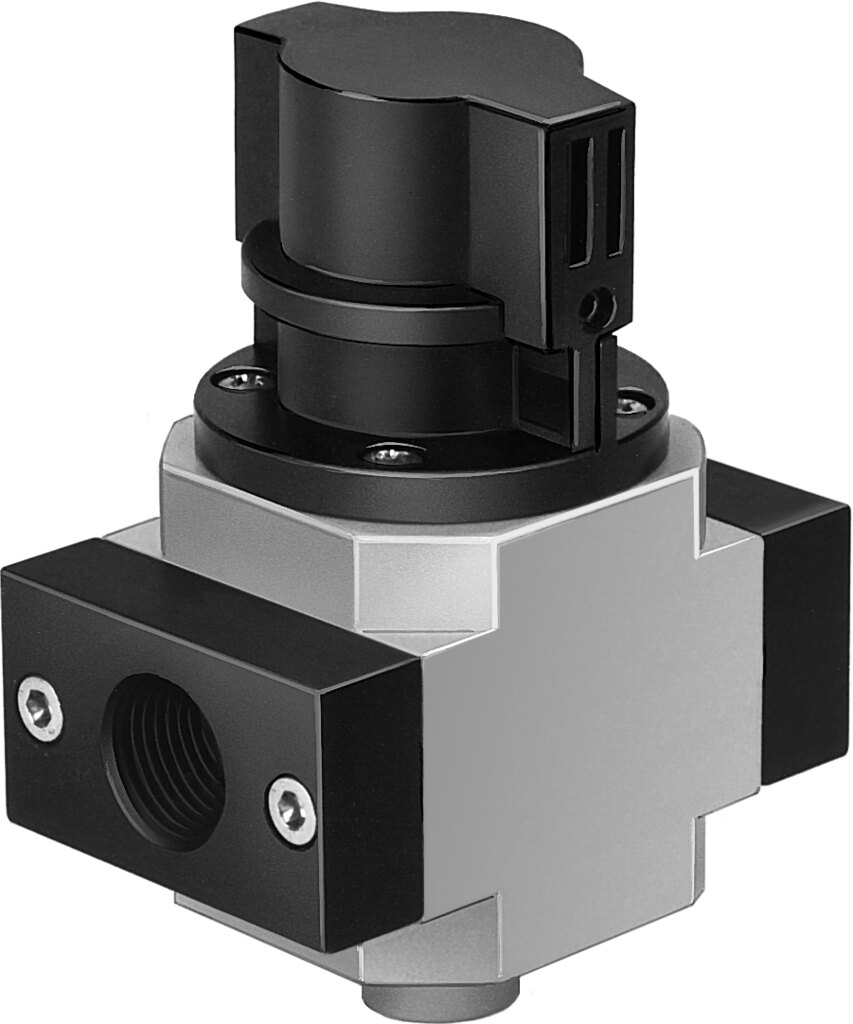

Festo HE-3/8-D-MINI On/off valve
Part number162808EAN / GTIN4052568072605HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HE-3/8-D-MINI — On/off valve, compressed air preparation. valve function 3/2-way, double solenoid; operating pressure 0. 1.6 MPa (0. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 162808
- Type code
- HE-3/8-D-MINI
- EAN / GTIN
- 4052568072605
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Design
- Piston gate valve
- Type of actuation
- Manual
- Sealing principle
- Soft
- Exhaust-air function
- Cannot be throttled
- Manual override
- None
- Symbol
- 00995571
- Valve function
- 3/2-way, double solenoid
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar)
- C value
- 7.5 l/sbar
- b value
- 0.27
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Type of mounting
- Inline installation, with accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 192 g
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G1/8
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 3/8"
- Activation
- Manual
- Series
- HE
- Carbon footprint (EPD)
- 7.5259 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568072605
- MPN 162808
Product Documentation
Document preview: HE-3/8-D-MINI — Festo product documentation
