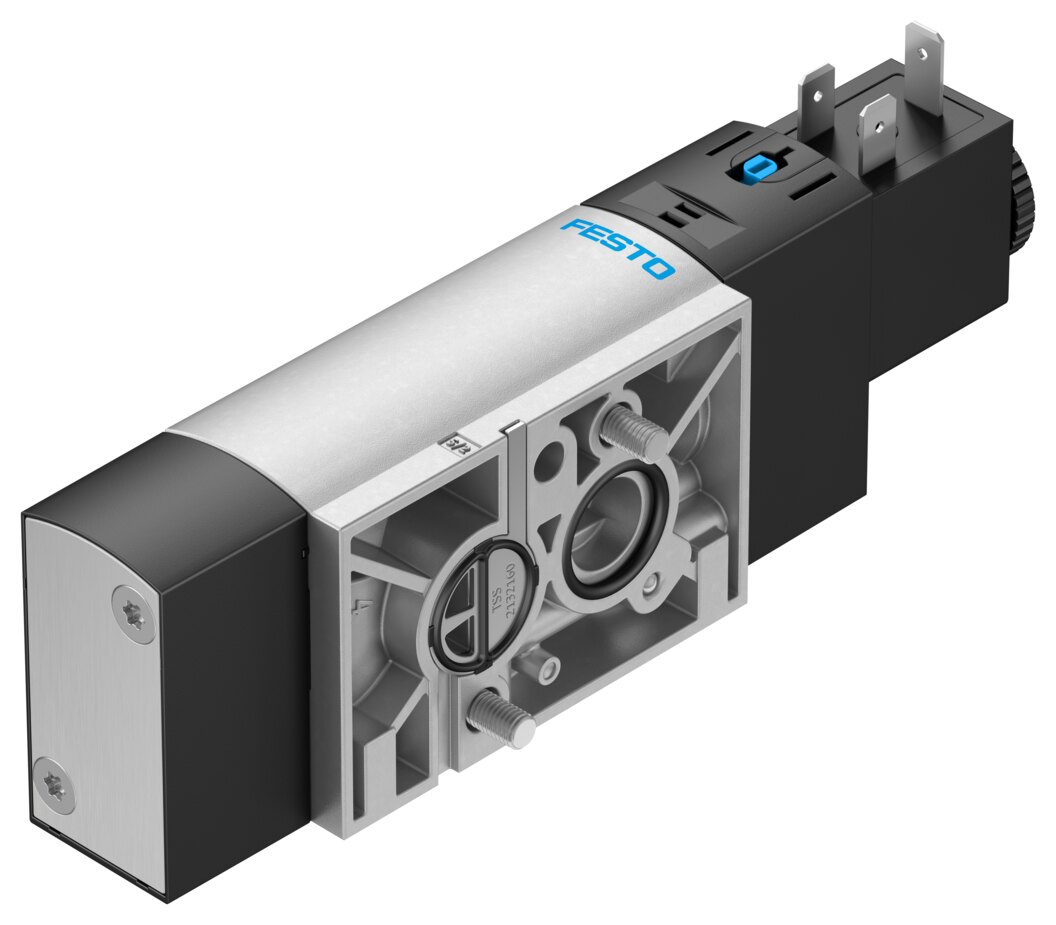

Festo VSNC-FC-M52-MD-G14-F8-1B2 Solenoid valve

Festo VSNC-FC-M52-MD-G14-F8-1B2 — Solenoid valve, namur valves. valve function 5/2-way or 3/2-way, convertible; operating pressure 0.25. 1 MPa (2.5. 10 bar); conforms to standard VDI/VDE 3845 (NAMUR).

Manufacturer part number (MPN)

577295

Type code

VSNC-FC-M52-MD-G14-F8-1B2

EAN / GTIN

4052568225865

Product category

NAMUR valves

Valve function

5/2-way or 3/2-way, convertible

Type of actuation

Electrical

Construction width

32 mm

Standard nominal flow rate (standardised to DIN 1343)

1250 l/min

pneumatic working port

Connection pattern to NAMUR

Operating voltage

24 V DC

Operating pressure

0.25 ... 1 MPa (2.5 ... 10 bar)

Design

Piston gate valve

Type of reset

Mechanical spring

Approval

c UL us - Recognised (Oil)

Certificate issuing authority

DNVGL-TAA000011J

Degree of protection

IP65, IP67, with plug socket, To IEC 60529

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Conforms to standard

VDI/VDE 3845 (NAMUR)

Manual override

Detenting, Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991831

lap

Overlap

Signal status display

With accessories

b value

0.4

C value

5.2 l/sbar

Standard nominal flow rate, exhaust return 4->3

110 l/min

Switching time off

48 ms

Switching time on

11 ms

Duty cycle

100%

Characteristic coil data

24 V DC: 3.3 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B2-L

Media temperature

-20 ... 60 °C

Ambient temperature

-20 ... 60 °C

Product weight

380 g

Electrical connection

Type B, Plug, To industry standard (11 mm)

Type of mounting

With through-hole

Breather connection

Not ducted

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

Connection pattern to NAMUR

Pneumatic connection, port 3

G1/4

Pneumatic connection, port 4

Connection pattern to NAMUR

Pneumatic connection, port 5

G1/4

Material seals

NBR

Material housing

Wrought aluminium alloy

Material screws

Galvanised steel

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

G1/4"

Activation

El

Return

Spring

Temperature min

-20 °C

Temperature max

60 °C

Working pressure

10 bar

Carbon footprint (EPD)

9.7379 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568225865
• MPN 577295
