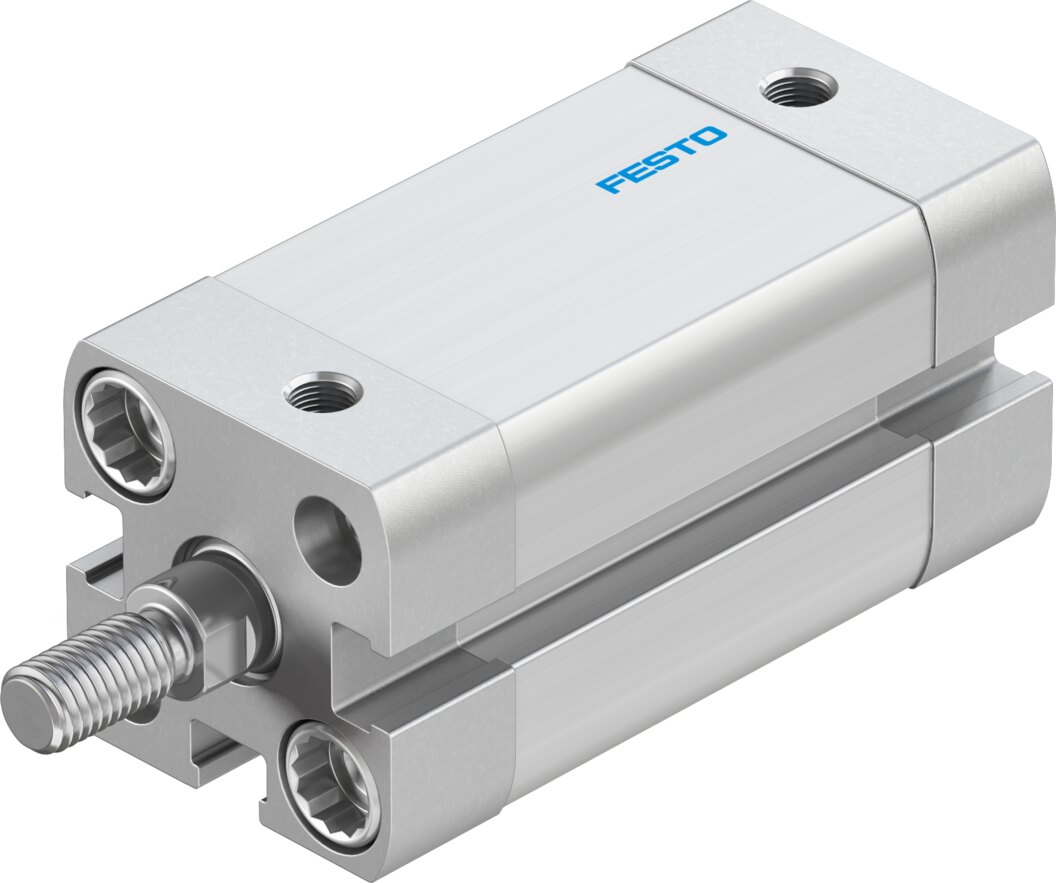

Festo ADN-16-25-A-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN-16-25-A-P-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 25 mm; piston diameter 16 mm; operating pressure 0.1. 1 MPa (1. 10 bar; 14.5. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 536223
- Type code
- ADN-16-25-A-P-A
- EAN / GTIN
- 4052568087296
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 25 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M6
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Male thread
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar; 14.5 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.15 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 90 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 121 N
- Moving mass
- 28 g
- Product weight
- 110 g
- Type of mounting
- With through-hole, with female thread, with accessories
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Temperature max
- 80 °C
- Temperature min
- -20 °C
- Working pressure min
- 1 bar
- Working pressure max
- 10 bar
- Carbon footprint (EPD)
- 1.9425 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568087296
- MPN 536223
