Festo

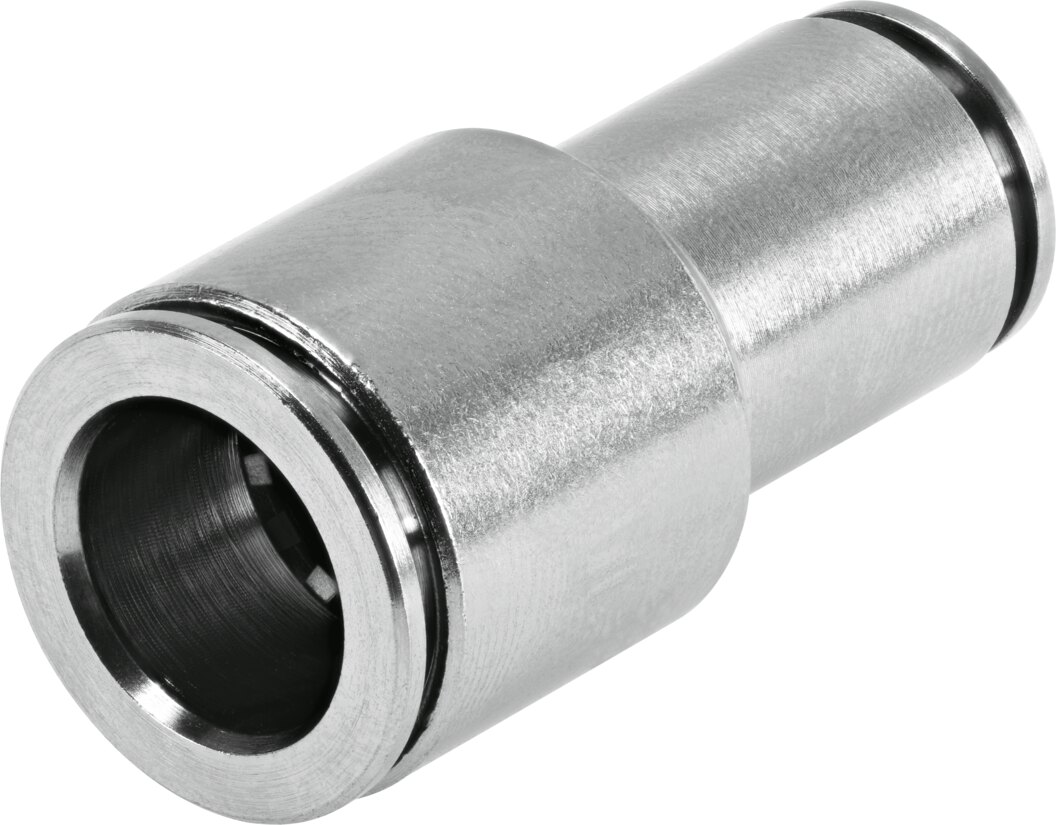

Festo NPQH-D-Q14-Q12-P10 Connector
Part number578333EAN / GTIN4052568060367HS code7412.20
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-D-Q14-Q12-P10 — Connector, push-in fittings. nominal size 11 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 578333
- Type code
- NPQH-D-Q14-Q12-P10
- EAN / GTIN
- 4052568060367
- Product category
- Push-in fittings
- Size
- Standard
- Nominal size
- 11 mm
- Tubing insertion depth
- 19.5 ... 22.5 mm
- Mounting position
- Any
- Design
- Straight design
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar; -13.775 ... 290 psi)
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 3 - high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity, NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Product weight
- 45.8 g
- Pneumatic connection, port 1
- For tubing outer diameter of 14 mm
- Pneumatic connection, port 2
- For tubing outer diameter of 12 mm
- Colour of release ring
- Silver
- Material housing
- Brass, chemically nickel-plated
- Guard ring material
- PEI
- Material release ring
- Chemically nickel-plated brass
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PEI
- Product type
- Collectors Push-in
- Product group
- Pneumatics
- Outer hose diameter
- 14 mm
- Outer hose diameter 2
- 12 mm
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.3192 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568060367
- MPN 578333
Product Documentation
Document preview: NPQH-D-Q14-Q12-P10 — Festo product documentation
More from Festo
Festo
Festo NEBA-M8G3-U-2.5-N-M8G3 Connecting cable
8078286
Festo
Festo DZH-20-125-PPV-A Flat cylinder
151139
Festo
Festo CRDSNU-B-25-40-PPS-A-MG-A1 ISO cylinder
2159638
Festo
Festo DSNU-63-40-P-A Round cylinder
196011
Festo
Festo DADS-AB-G6-25-500 Covering
1212523
Festo
Festo VABM-L1-10G-G18-24-M-GR Manifold rail
573929
Festo

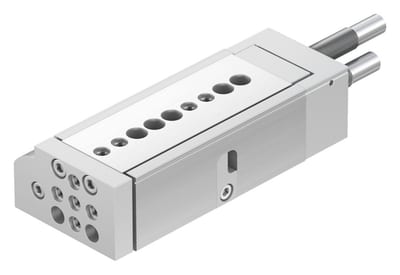

Festo DGSL-12-40-Y3A Mini slide
543978
Festo

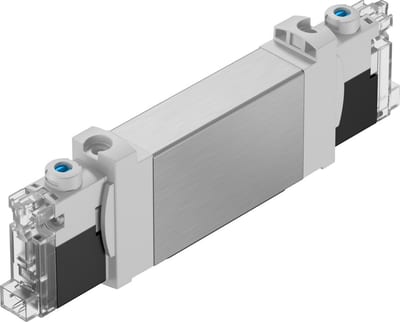

Festo VUVG-BK14-B52-T-F-1H2L-S Solenoid valve
