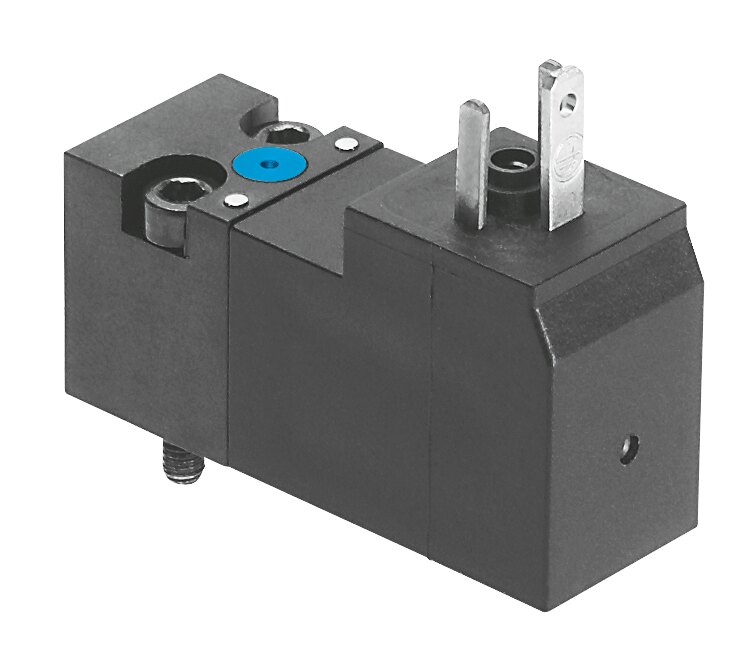

Festo VSCS-B-M32-MH-WA-1AC1-8 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VSCS-B-M32-MH-WA-1AC1-8 — Solenoid valve, standards-based directional control valves. valve function 3/2-way, single solenoid, closed; operating pressure 0.15. 0.8 MPa (1.5. 8 bar; 21.75. 116 psi); conforms to standard ISO 15218.
Technical Specifications
- Manufacturer part number (MPN)
- 8040566 Type code: VSCS-B-M32-MH-WA-1AC1-8 EAN / GTIN: 4052568434557 Product category: Standards-based directional control valves Valve function: 3/2-way, single solenoid, closed Type of actuation: Electrical Construction width: 15 mm Standard nominal flow rate (standardised to DIN 1343): 13.5 l/min pneumatic working port: Sub-base size 15 mm to ISO 15218 Operating voltage: 24V AC Operating pressure: 0.15 ... 0.8 MPa (1.5 ... 8 bar; 21.75 ... 116 psi) Type of reset: Mechanical spring Degree of protection: IP65 Sealing principle: Soft Mounting position: Any Conforms to standard: ISO 15218 Manual override: Non-detenting Type of piloting: Direct Flow direction: Non-reversible Symbol: 00991308 lap: Underlap Switching time off: 30 ms Switching time on: 9 ms Duty cycle: 100% Characteristic coil data: 24 V AC: 50/60 Hz, pick-up power 2.1 VA, holding power 1.6 VA Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-C1-L Media temperature: -5 ... 50 °C Ambient temperature: -5 ... 50 °C Electrical connection: Type C, To DIN EN 175301-803 Pneumatic connection, port 1: Sub-base Pneumatic connection, port 2: Sub-base Pneumatic connection, port 3: Sub-base material seals: NBR Product type: Pneumatic solenoid valves Product group: Pneumatics Activation: El Return: mechanical spring Carbon footprint (EPD): 0.6426 kg CO2e per pcs Country of origin: Italy Customs tariff code (EU CN): 84812090 HS code: 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568434557
- MPN 8040566
