Festo

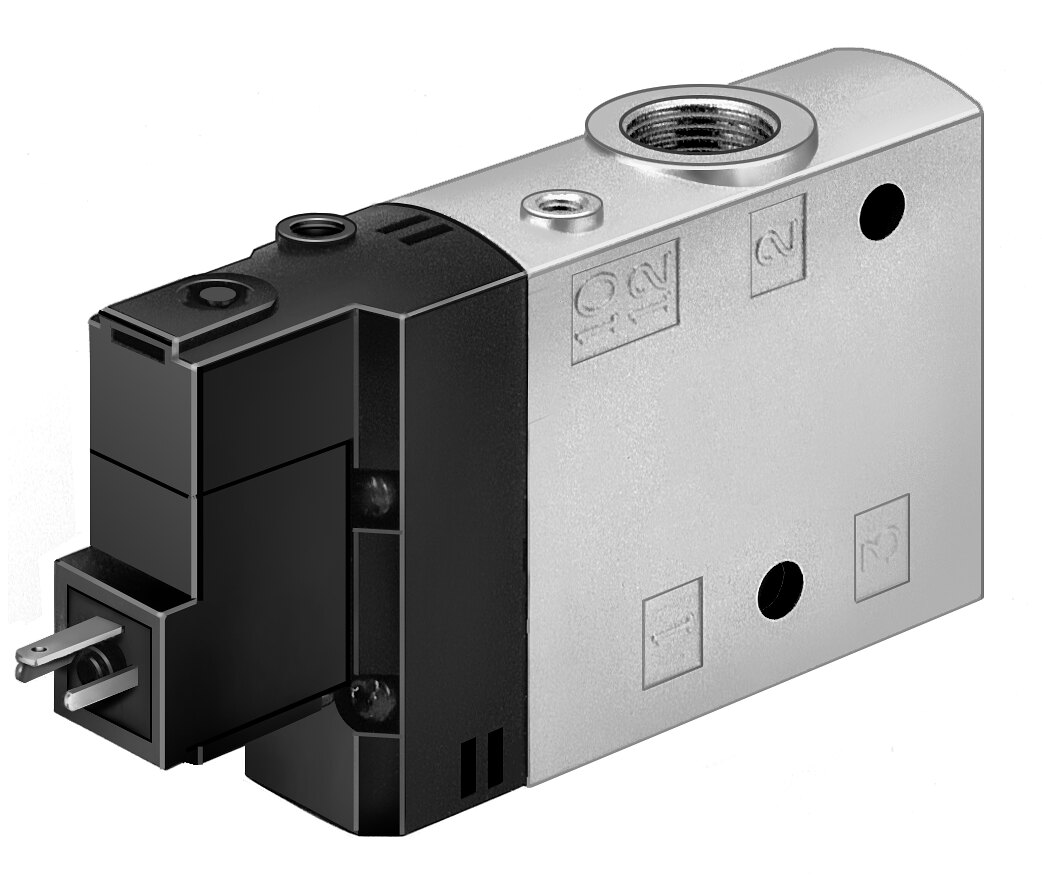

Festo CPE24-M1H-3OL-3/8 Solenoid valve
Part number163164EAN / GTIN4052568133269HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE24-M1H-3OL-3/8 — Solenoid valve, valves and valve terminals. valve function 3/2-way, single solenoid, open; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 11 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 163164
- Type code
- CPE24-M1H-3OL-3/8
- EAN / GTIN
- 4052568133269
- Product category
- Valves and valve terminals
- Valve function
- 3/2-way, single solenoid, open
- Type of actuation
- Electrical
- Construction width
- 24 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 3000 l/min
- pneumatic working port
- G3/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 11 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991656
- Valve position code
- Label holder
- lap
- Overlap
- Switching time off
- 33 ms
- Switching time on
- 50 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse with 1 signal
- 3100 µs
- Characteristic coil data
- 24 V DC: 1.5 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 220 g
- Electrical connection
- Type C
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot air port 12
- M5
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 5.1181 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568133269
- MPN 163164
Product Documentation
Document preview: CPE24-M1H-3OL-3/8 — Festo product documentation
More from Festo
Festo
Festo ADN-40-20-I-P-A Compact cylinder
536302
Festo
Festo SNCB-80 Swivel flange
174394
Festo
Festo ADNGF-25-15-P-A Compact cylinder
554231
Festo

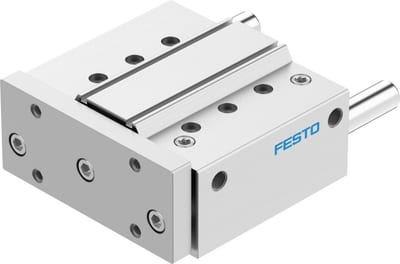

Festo DFM-80-100-P-A-KF Guided drive
170963
Festo

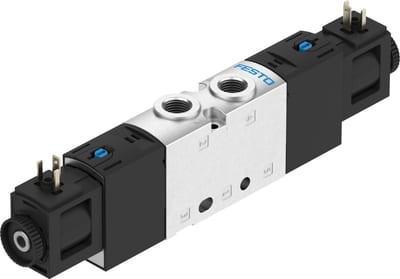

Festo VUVS-L20-B52-ZD-G18-F7-1C1 Solenoid valve
575683
Festo

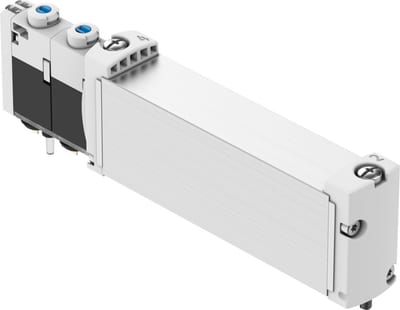

Festo VUVG-B18-P53C-ZT-F-1T1L Solenoid valve
8004894
Festo
Festo VABB-L1-14-T-F1A Cover plate
8141538
Festo

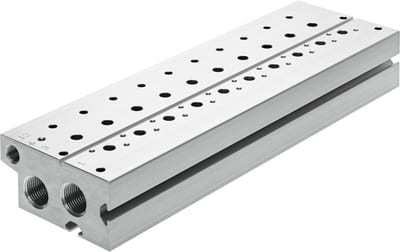

Festo VABM-B10-25E-G12-10-P3 Manifold block
