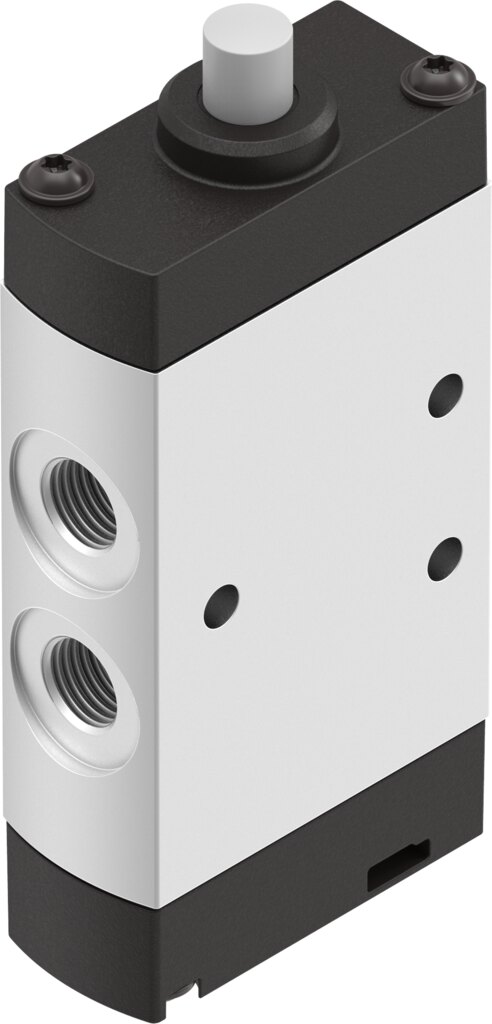

Festo VMEF-S Cam valve 5/2 - Spring, Ringetryk, 1/8", VMEF-S-M52-M-G18
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VMEF-S Cam valve 5/2. Pneumatic Valve Manual (Technique / Pneumatics / Pneumatics - Valves). Principal data: return Spring, activation Ringetryk, thread 1/8", supplier type designation VMEF-S-M52-M-G18. Supplied under manufacturer part number 8031297, EAN 4052568293864, HS code 8481.20, country of origin Hungary.
Technical Specifications
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Mechanical
- Construction width
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 5.2 mm
- Instructions on use
- Do not use as a mechanical stop
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00991364
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Explosion protection
- Zone 1 (ATEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Actuating force
- 34 N
- Product weight
- 145 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material cover
- Reinforced PA
- Material seals
- NBR
- Material housing
- Anodised wrought aluminium alloy
- EAN / GTIN
- 4052568293864
- Festo type code
- VMEF-S-M52-M-G18
- Festo order number
- 8031297
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Spring
- Activation
- Ringetryk
- Thread
- 1/8"
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 1.2228 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 8031297
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568293864
- MPN 8031297
Product Documentation
More from Festo
Festo
Festo HGL Controlled check valve - 1/4", Air, HGL-1/4-B
530031
Festo
Festo U Silencer polymer BSPP - 3/4", U-3/4
4052568000233
Festo
Festo AEVC Short stroke cylinder - 63mm, G1/8, 25mm, AEVC-63-25-A-P-A
188281
Festo
Festo LF Filter Mini manual - 5MY, LF-D-5M-MINI
192557
Festo
Festo DFM Guide Cylinder - 32mm, G1/8, 200mm, DFM-32-200-P-A-GF
170863
Festo
Festo ADN Compact cylinder double-acting - 25mm, 6mm, M5, 60mm, ADN-25-60-I-P-A
536383
Festo
Festo DGSL Mini Slide - G1/8, DGSL-25-40-PA
544033
Festo

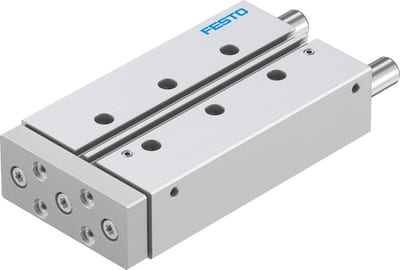

Festo DFM Guide Cylinder - 20mm, M5, 100mm, DFM-20-100-P-A-GF
