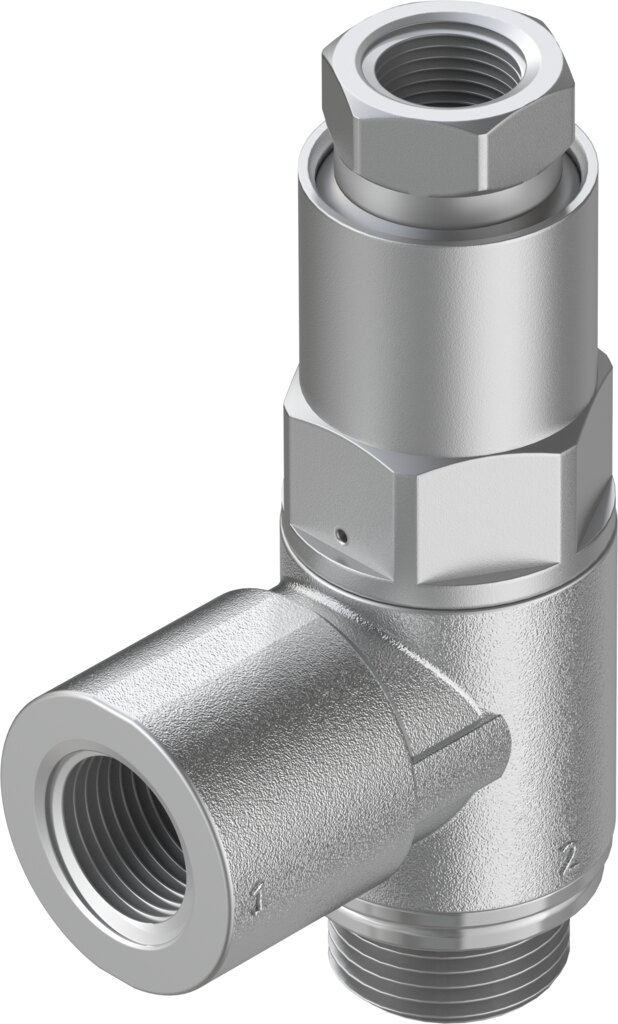

Festo HGL Controlled check valve - 1/4", Air, HGL-1/4-B
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HGL Controlled check valve. Pneumatic Valves Air-Controlled (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 1/4", activation Air, supplier type designation HGL-1/4-B. Supplied under manufacturer part number 530031, EAN 4052568006839, HS code 8481.30, country of origin Germany.
Technical Specifications
- Valve function
- Piloted non-return function
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pilot air port 21
- G1/8
- Type of actuation
- Pneumatic
- Type of mounting
- Screw-in; With male thread
- Operating pressure
- 0.05 ... 1 MPa (0.5 ... 10 bar)
- Pilot pressure
- 0.2 ... 1 MPa (2 ... 10 bar) (29 ... 145 psi)
- Ambient temperature
- -10 ... 60 °C
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Maritime classification
- See certificate
- Mounting position
- Any
- Symbol
- 00991456
- Standard flow rate 1->2 (6-0)
- 680 l/min
- Standard nominal flow rate 1->2 (6-5)
- 550 l/min
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Storage temperature
- -10 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Nominal torque
- 11 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 41.2 g
- Material seals
- NBR
- Material hollow bolt
- Wrought aluminium alloy; anodised
- Material release ring
- POM
- Material non-return collar
- NBR
- Material swivel fitting
- Die-cast zinc
- EAN / GTIN
- 4052568006839
- Festo type code
- HGL-1/4-B
- Festo order number
- 530031
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- 1/4"
- Activation
- Air
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 0.2420 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84813099
- HS code
- 8481.30
- Manufacturer part number
- 530031
