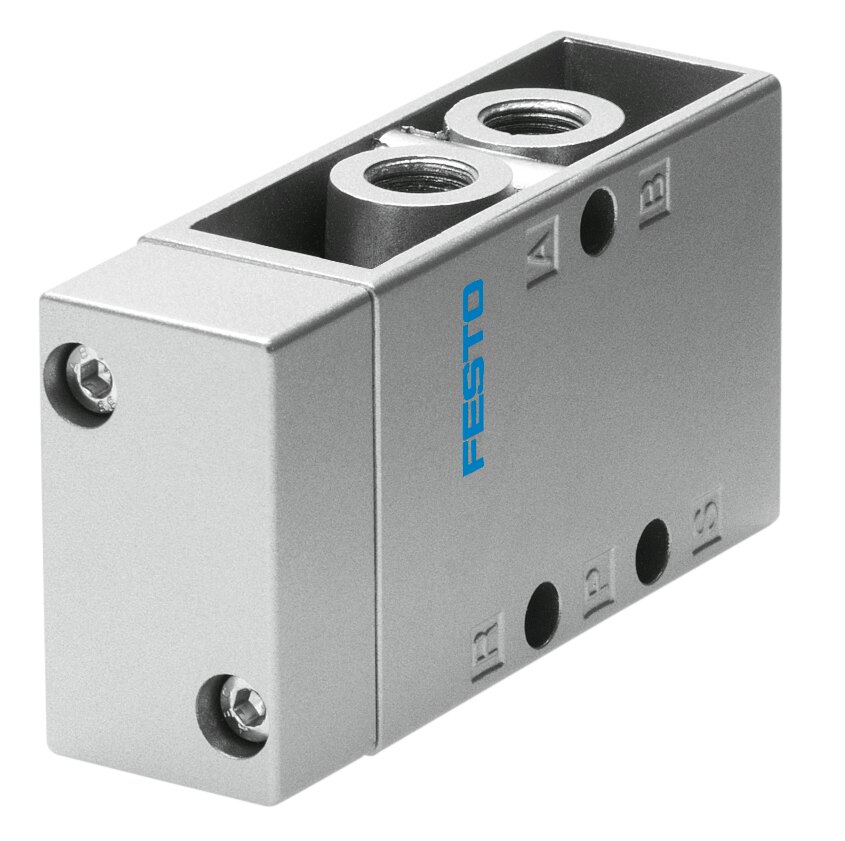

Festo VL-5-1/8-EX Pneumatic valve

Festo VL-5-1/8-EX — Pneumatic valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure 0. 1 MPa (0. 10 bar); nominal size 5 mm.

Manufacturer part number (MPN)

536032

Type code

VL-5-1/8-EX

EAN / GTIN

4052568170615

Product category

Universal directional control valves

Valve function

5/2-way, single solenoid

Type of actuation

Pneumatic

Construction width

26 mm

Standard nominal flow rate (standardised to DIN 1343)

500 l/min

pneumatic working port

G1/8

Operating pressure

0 ... 1 MPa (0 ... 10 bar)

Design

Poppet seat

Type of reset

Mechanical spring

Degree of protection

IP65

CE mark (see declaration of conformity)

To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)

To UK EX instructions

ATEX category gas

II 2G

ATEX category dust

II 2D

Explosion ignition protection type for gas

Ex h IIC T4 Gb

Explosion ignition protection type for dust

Ex h IIIC T130°C Db

Explosion ambient temperature

-10°C <= Ta <= +60°C

Explosion protection certification outside the EU

EPL Db (GB), EPL Gb (GB)

Nominal size

5 mm

Grid dimension

27 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Type of piloting

Direct

Pilot air supply

External

Flow direction

Non-reversible

Symbol

00991001

lap

Underlap

Pilot pressure

0.12 ... 1 MPa (1.2 ... 10 bar)

Max. switching frequency

12 Hz

Switching time off

16 ms

Switching time on

5 ms

Max. positive test pulse with 0 signal

2200 µs

Max. negative test pulse with 1 signal

3700 µs

Explosion protection

Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Storage temperature

-20 ... 60 °C

Media temperature

-10 ... 60 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-10 ... 60 °C

Product weight

220 g

Type of mounting

On manifold rail, with through-hole

Breather connection

M3

Pilot exhaust port 82

M5

Pilot air port 14

G1/8

Pneumatic connection, port 1

G1/8

Pneumatic connection, port 2

G1/8

Pneumatic connection, port 3

G1/8

Pneumatic connection, port 4

G1/8

Pneumatic connection, port 5

G1/8

Material seals

NBR, TPE-U(PU)

Material housing

Die-cast aluminium

Product type

Pneumatic Valves Air-Controlled

Product group

Pneumatics

Thread

G1/8"

Activation

Air

Return

Spring

Carbon footprint (EPD)

3.7569 kg CO2e per pcs

Country of origin

India

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
