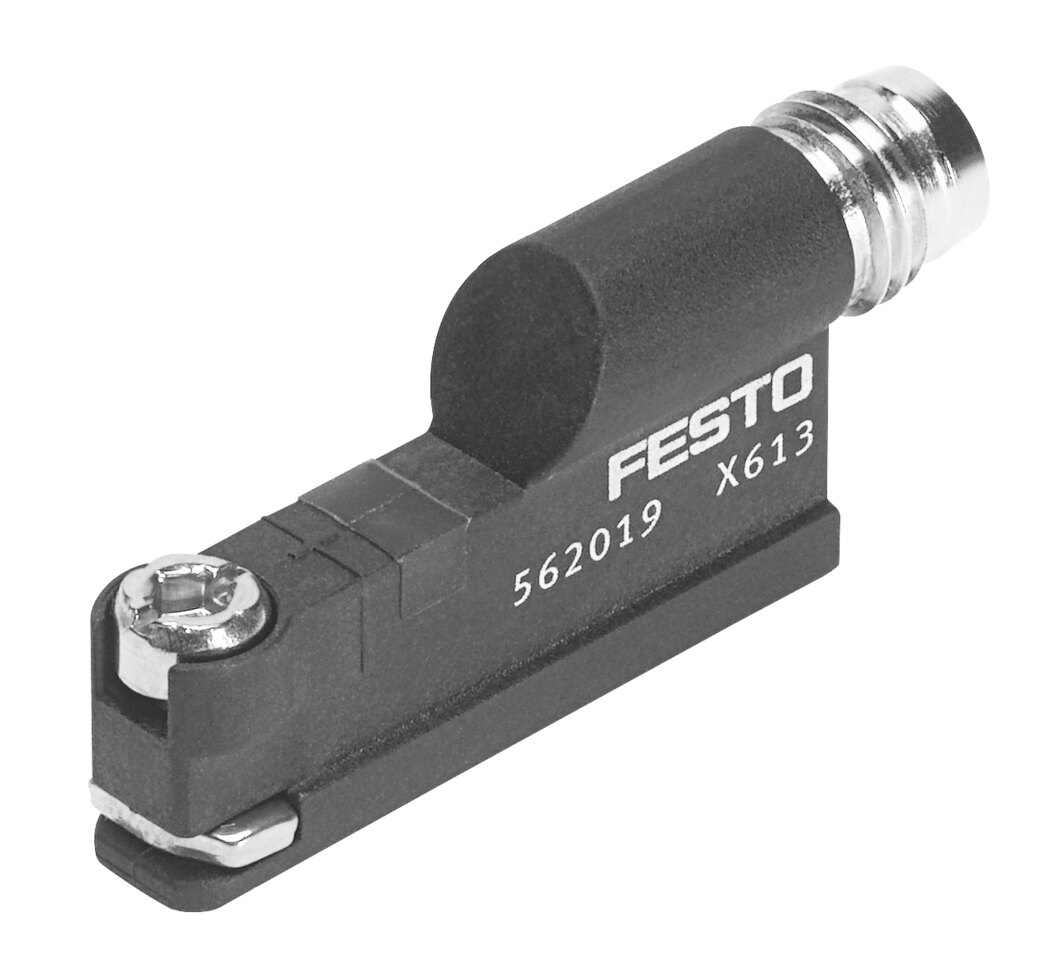

Festo SMT-8-SL-PS-LED-24-B Proximity sensor
Pricing
Request a quote
We reply within 24 hours
Overview
Festo SMT-8-SL-PS-LED-24-B Proximity sensor (part number 562019) is listed under Pneumatics / Pneumatic Components. Type code: SMT-8-SL-PS-LED-24-B; Product category: T-slot cylinder sensors; Design: For T-slot; Based on standard: EN 60947-5-2; Symbol: 00991153; Approval: RCM, c UL us - Listed (Oil).
Technical Specifications
- Manufacturer part number (MPN)
- 562019
- Type code
- SMT-8-SL-PS-LED-24-B
- EAN / GTIN
- 4052568099053
- Product category
- T-slot cylinder sensors
- Design
- For T-slot
- Based on standard
- EN 60947-5-2
- Symbol
- 00991153
- Approval
- RCM, c UL us - Listed (Oil)
- CE mark (see declaration of conformity)
- To EU EMC Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- Certificate issuing authority
- UL E232949
- Instructions on use
- https://www.festo.com/Drive-Sensor-Overview
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -20 ... 70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching element function
- N/O contact
- Switch-on time
- 1 ms
- Switch-off time
- 2 ... 6 ms
- Max. switching frequency
- 140 Hz
- Max. output current
- 100 mA
- Max. switching capacity DC
- 3 W
- Voltage drop
- 2 V
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Min. load current
- 0.1 mA
- Off-state current
- 0.002 mA
- Short circuit current rating
- Yes
- Overload protection
- Yes
- Rated operational voltage DC
- 24 V
- Operational voltage range DC
- 10 ... 30 V
- Residual ripple
- 10%
- Reverse polarity protection
- For all electrical connections
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connector system
- M8x1, A-coded, to EN 61076-2-104
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, type of mounting
- Not rotatable
- Electrical connection 1, compatible type of mounting
- Compatible with latching lock, Compatible with rotatable screw-type lock
- Electrical connection 1, connection pattern
- 00991155
- Connection outlet orientation
- In-line
- Material electrical contact
- Gold-plated brass
- Material screw-type lock
- High-alloy stainless steel
- Type of mounting
- Screw-clamped, Inserted into the slot lengthwise
- Tightening torque
- 0.12 ... 0.4 Nm
- Max. tightening torque
- 0.4 Nm
- Mounting position
- Any
- Product weight
- 4.2 g
- Housing colour
- Black
- Material housing
- High-alloy stainless steel
- Switching status indication
- Yellow LED
- Degree of protection
- IP65, IP68
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.7581 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568099053
- MPN 562019
Product Documentation
