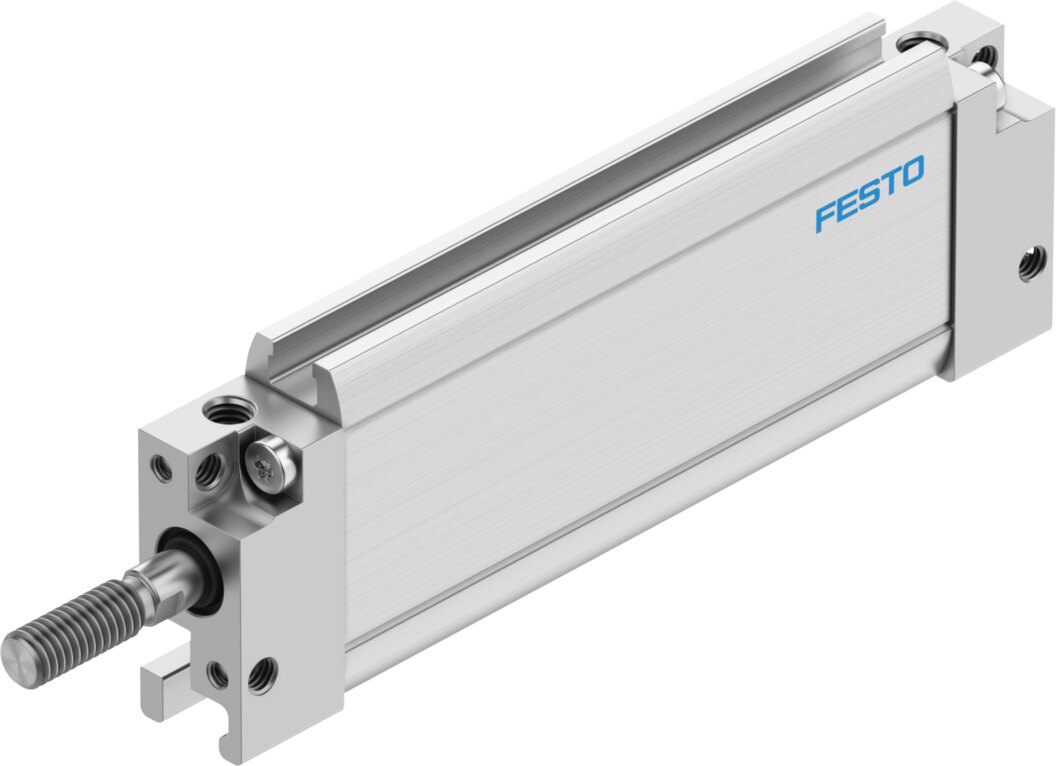

Festo DZF-12-50-A-P-A Flat cylinder

Festo DZF-12-50-A-P-A — Flat cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 50 mm; piston diameter 12 mm, Equivalent diameter; operating pressure 0.16. 1 MPa (1.6. 10 bar).

Manufacturer part number (MPN)

161227

Type code

DZF-12-50-A-P-A

EAN / GTIN

4052568128517

Product category

Compact pneumatic cylinders, short-stroke and flat cylinders

Stroke

50 mm

Piston diameter

12 mm, Equivalent diameter

Piston rod thread

M6

Torsional backlash at piston rod +/-

2.5 deg

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Mode of operation

Double-acting

Design

Piston, Piston rod

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Protection against torque/guide

Oval piston

Operating pressure

0.16 ... 1 MPa (1.6 ... 10 bar)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.09 J

Max. torque for protection against torsion

0.1 Nm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

51 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

68 N

Moving mass for 0 mm stroke

12 g

Additional moving mass per 10 mm stroke

2 g

Additional weight per 10 mm stroke

9 g

Basic weight for 0 mm stroke

96 g

Type of mounting

With female thread, with accessories

Pneumatic connection

M5

Material cover

Wrought aluminium alloy

Material seals

NBR, TPE-U(PU)

Material housing

Anodised wrought aluminium alloy

Material piston seal

NBR

Material piston rod

High-alloy stainless steel

Product type

Pneumatics VDMA air cylinder

Product group

Pneumatics

Diameter

12 mm

Carbon footprint (EPD)

2.5019 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568128517
• MPN 161227
