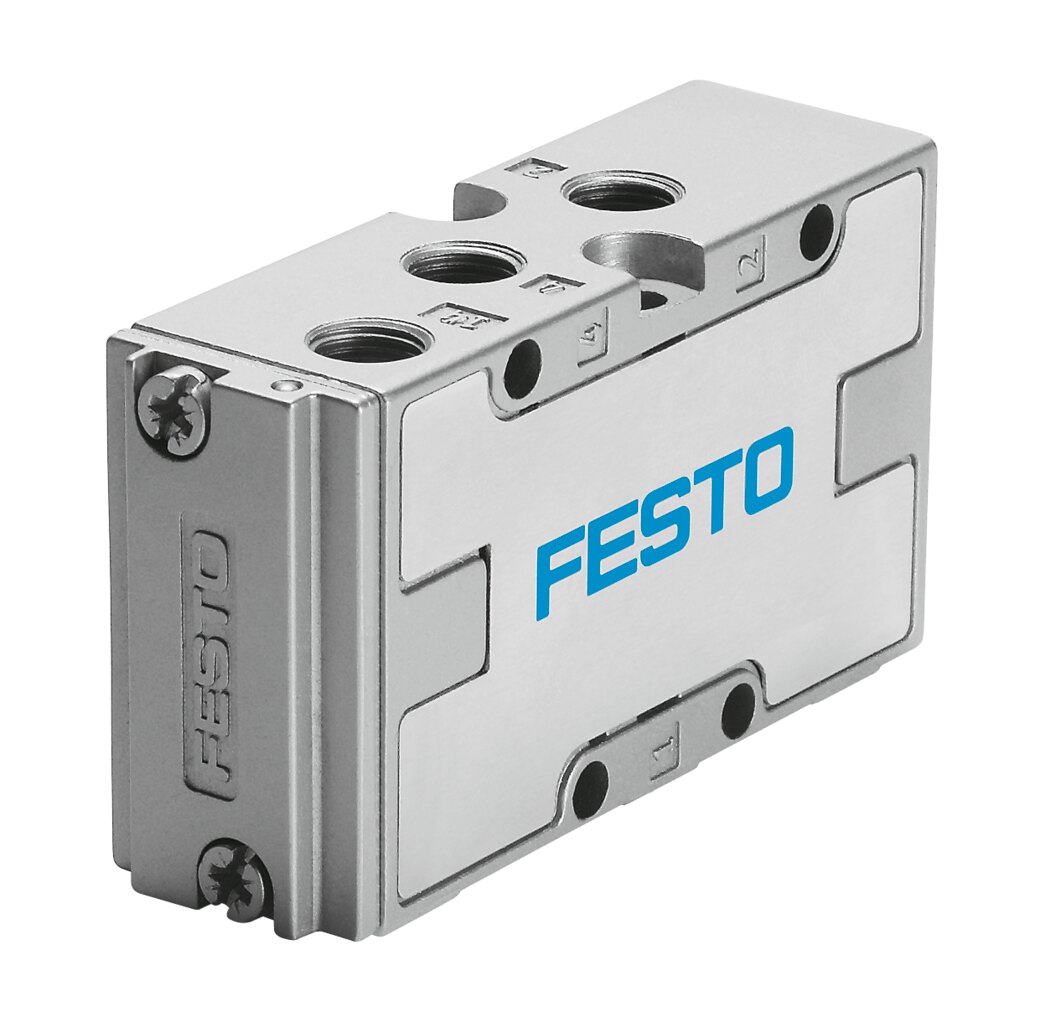

Festo VL-5-1/8-B Pneumatic valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VL-5-1/8-B — Pneumatic valve, valves and valve terminals. valve function 5/2-way, single solenoid; operating pressure 0. 1 MPa (0. 10 bar); nominal size 5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 31000
- Type code
- VL-5-1/8-B
- EAN / GTIN
- 4052568114350
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Pneumatic
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- G1/8
- Operating pressure
- 0 ... 1 MPa (0 ... 10 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Nominal size
- 5 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Non-reversible
- Symbol
- 00991001
- lap
- Underlap
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 10 ms
- Switching time on
- 2 ms
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 170 g
- Type of mounting
- On PR rail, with through-hole
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 3.2508 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568114350
- MPN 31000
Product Documentation
More from Festo
Festo
Festo MUC-63 Profile mounting
531757
Festo
Festo DFM-50-160-P-A-GF Guided drive
170876
Festo
Festo FK-M5 Self-aligning rod coupler
30984
Festo
Festo ADVC Short stroke cylinder - 40mm, G1/8, 10mm, ADVC-40-10-A-P-A
188243
Festo
Festo LFX-1/2-D-MIDI Activated carbon filter
532783
Festo
Festo VUVG-L10-M52-RZT-M7-1H2L-F1A Solenoid valve
8164358
Festo
Festo DZF-12-40-A-P-A Flat cylinder
161226
Festo

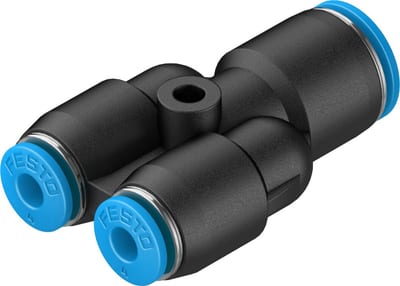

Festo QSY-8-4 Push-in Y-connector
