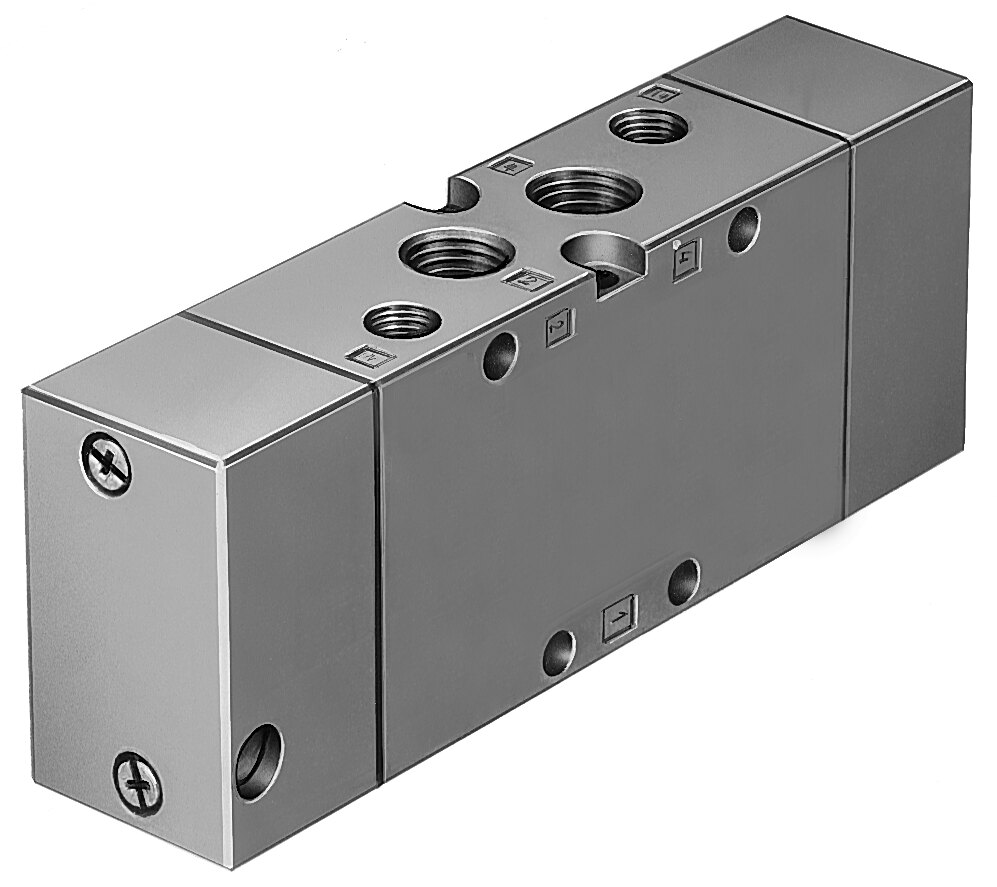

Festo VL-5/3B-1/4-B Pneumatic valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VL-5/3B-1/4-B — Pneumatic valve, valves and valve terminals. valve function 5/3-way, pressurised; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 10 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 14299
- Type code
- VL-5/3B-1/4-B
- EAN / GTIN
- 4052568112493
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Pneumatic
- Construction width
- 32 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 10 mm
- Grid dimension
- 33 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991022
- lap
- Overlap
- Pilot pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- b value
- 0.38
- C value
- 6.35 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 26 ms
- Switching time on
- 6 ms
- Switching time reversal
- 35 ms
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 375 g
- Type of mounting
- On PR rail, with through-hole
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 7.1635 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568112493
- MPN 14299
Product Documentation
More from Festo
Festo
Festo VUVG-B14-T32U-MZT-F-1R8L Solenoid valve
8031517
Festo
Festo ADVU-125-60-P-A Compact cylinder
175757
Festo
Festo LFR-1/8-D-5M-MINI Filter regulator
162718
Festo
Festo DFM-32-100-B-PPV-A-GF Guided drive
578878
Festo
Festo AEVU-50-10-P-A Compact cylinder
156960
Festo
Festo NPQH-D-Q6-E-P10 Connector
578324
Festo

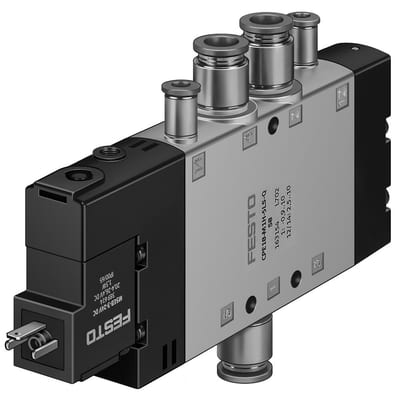

Festo CPE24-M3H-5LS-QS-10 Solenoid valve
163846
Festo

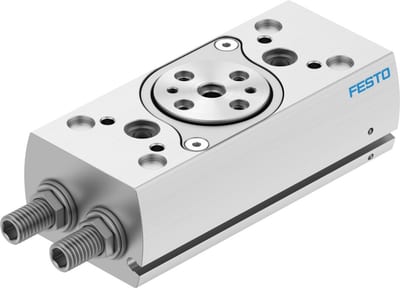

Festo DRRD-12-180-FH-PA Semi-rotary drive
