Festo

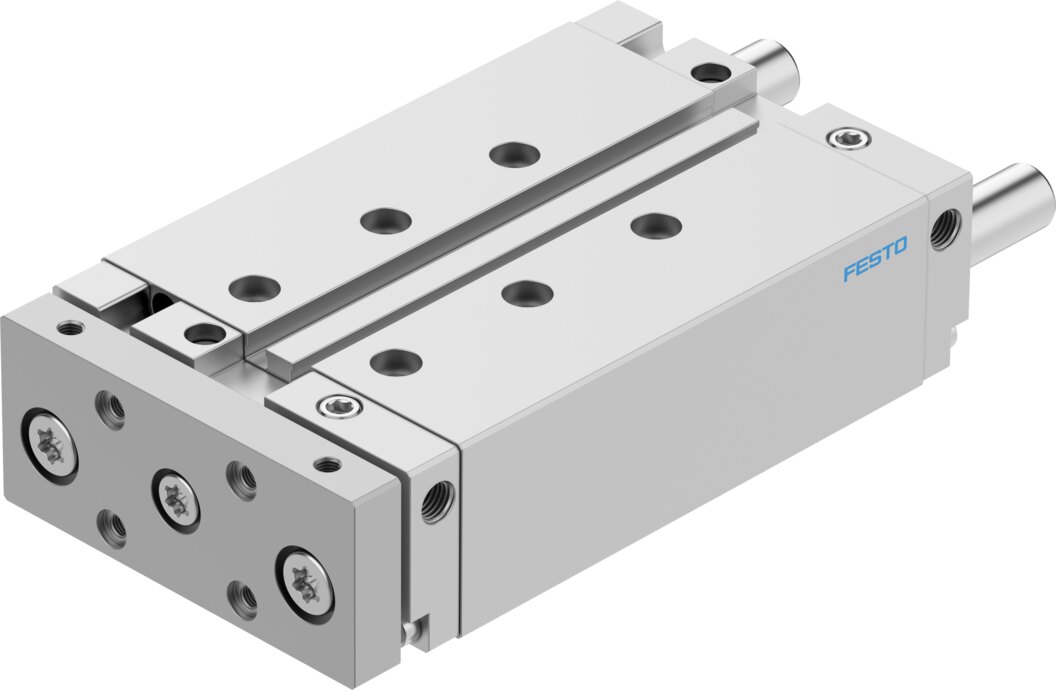

Festo DFM-32-100-B-PPV-A-GF Guided drive
Part number578878EAN / GTIN4052568385576HS code8412.31
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-32-100-B-PPV-A-GF — Guided drive, drives with guide rods. stroke 100 mm; piston diameter 32 mm; operating pressure 0.15. 1 MPa (1.5. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 578878
- Type code
- DFM-32-100-B-PPV-A-GF
- EAN / GTIN
- 4052568385576
- Product category
- Drives with guide rods
- Stroke
- 100 mm
- Piston diameter
- 32 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.4 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 482 N
- alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 71.4964 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568385576
- MPN 578878
Product Documentation
Document preview: DFM-32-100-B-PPV-A-GF — Festo product documentation
