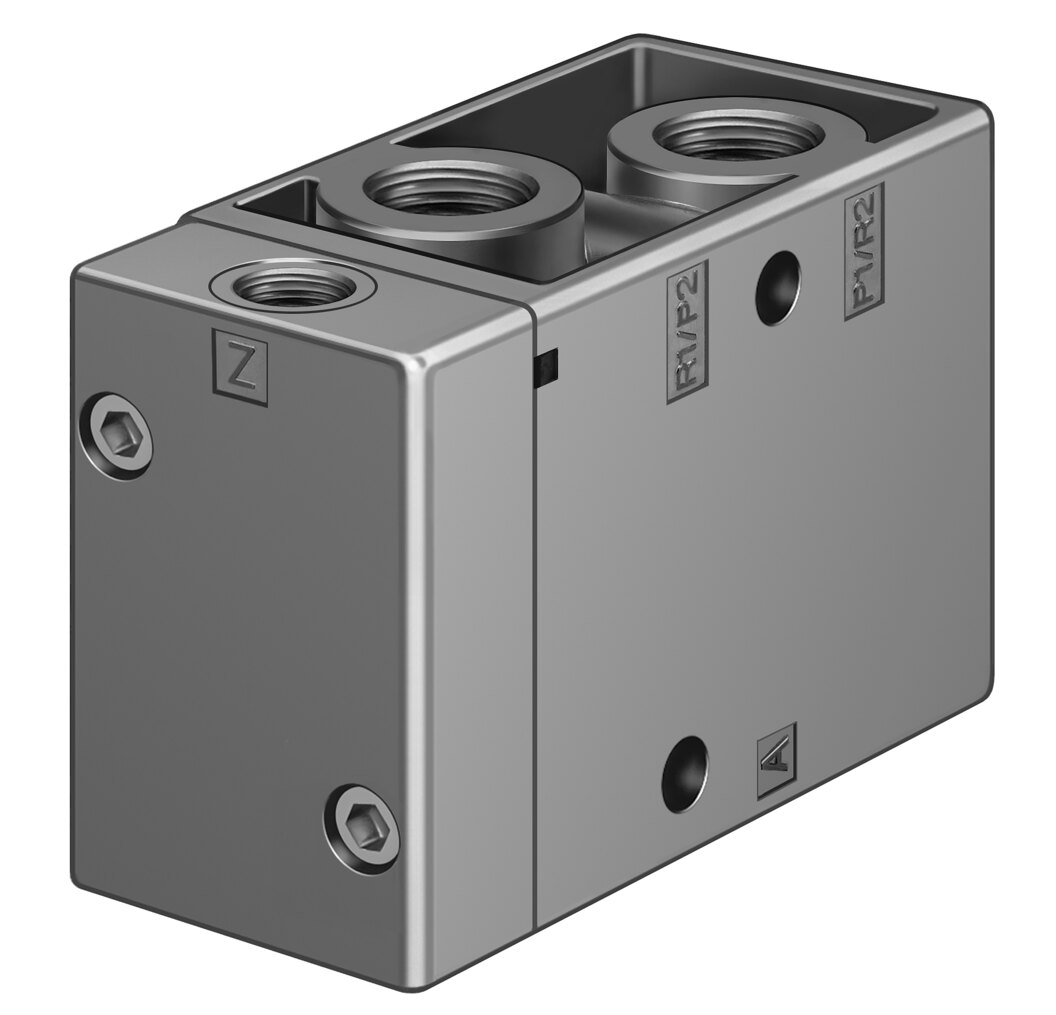

Festo VL/O-3-3/4 Pneumatic valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VL/O-3-3/4 — Pneumatic valve, universal directional control valves. valve function 3/2-way, monostable, open/closed; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 19 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 10049
- Type code
- VL/O-3-3/4
- EAN / GTIN
- 4052568002114
- Product category
- Universal directional control valves
- Valve function
- 3/2-way, monostable, open/closed
- Type of actuation
- Pneumatic
- Construction width
- 68 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 7500 l/min
- pneumatic working port
- G3/4
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Nominal size
- 19 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991030
- lap
- Underlap
- Pilot pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Switching time off
- 35 ms
- Switching time on
- 12 ms
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1200 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail, with through-hole
- Pilot air port 110
- G1/4
- Pilot air port 12
- G1/4
- Pneumatic connection, port 1
- G3/4
- Pneumatic connection, port 11
- G3/4
- Pneumatic connection, port 2
- G3/4
- Pneumatic connection, port 3
- G3/4
- Pneumatic port 33
- G3/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G3/4"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 24.5660 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
