Festo JMFH-5-1/8-B Solenoid valve
Part number30486EAN / GTIN4052568113681HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFH-5-1/8-B — Solenoid valve, valves and valve terminals. valve function 5/2-way, double solenoid; operating pressure 0.2. 1 MPa (2. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 30486
- Type code
- JMFH-5-1/8-B
- EAN / GTIN
- 4052568113681
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/8
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Design
- Piston gate valve
- Nominal size
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991013
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Switching time reversal
- 12 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 400 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail, with through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 5.1144 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568113681
- MPN 30486
Product Documentation
Document preview: JMFH-5-1/8-B — Festo product documentation
More from Festo
Festo
Festo VZWM-L-M22C-G12-F4 Solenoid valve
546148
Festo
Festo VUVG-L10-T32C-MT-M5-1R8L Solenoid valve
8031468
Festo

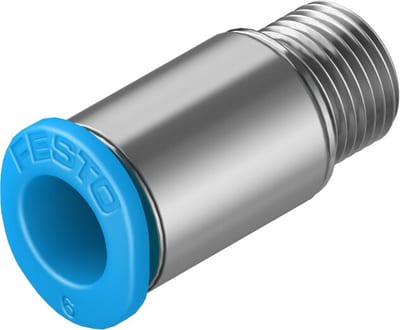

Festo QSM-M7-6-I Push-in fitting
153321
Festo
Festo CPE10-M1CH-5J-M7 Solenoid valve
550225
Festo

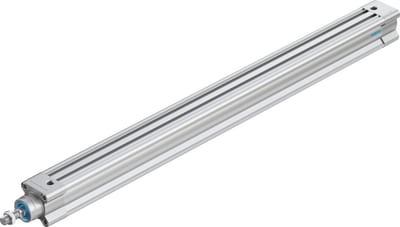

Festo DSBC-32-500-PPSA-N3 ISO cylinder
1376478
Festo

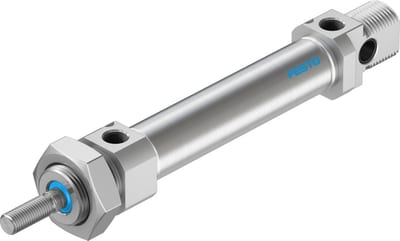

Festo DSNU-20-60-PPV-A ISO cylinder
1908294
Festo
Festo LF-D-5M-MIDI Filter
192558
Festo

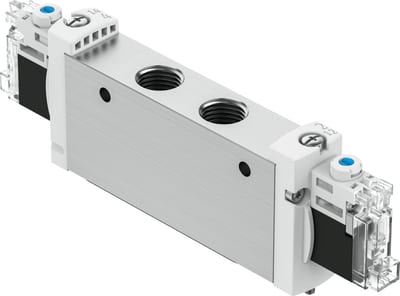

Festo VUVG-L18-T32C-MT-G14-1H2L-F1A Solenoid valve
