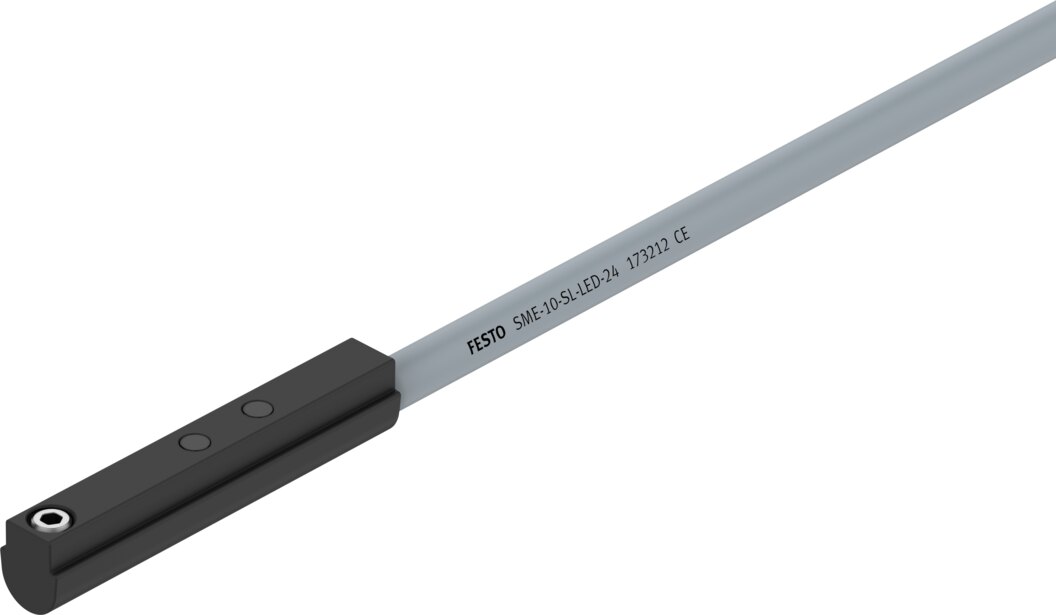

Festo SME-10-SL-LED-24 Proximity sensor
Part number173212EAN / GTIN4052568013790HS code8536.50
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SME-10-SL-LED-24 — Proximity sensor, sensors. conforms to standard EN 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- 173212
- Type code
- SME-10-SL-LED-24
- EAN / GTIN
- 4052568013790
- Product category
- Sensors
- Design
- For C-slot
- Conforms to standard
- EN 60947-5-2
- Symbol
- 00991619
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC, To UK RoHS instructions
- Instructions on use
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 ... 70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Switch-on time
- 0.6 ms
- Switch-off time
- 0.05 ms
- Max. switching frequency
- 500 Hz
- Max. output current
- 100 mA
- Max. switching capacity DC
- 1 W
- Voltage drop
- 0 V
- Short circuit current rating
- No
- Overload protection
- Not provided
- Operational voltage range AC
- 12 ... 27 V
- Operational voltage range DC
- 12 ... 27 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connector system
- M8x1, A-coded, to EN 61076-2-104
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, type of mounting
- Snap-locking, Screw-type lock, Not rotatable
- Electrical connection 1, compatible type of mounting
- Compatible with latching lock, Compatible with rotatable screw-type lock
- Electrical connection 1, connection pattern
- 00991155
- Connection outlet orientation
- In-line
- Cable length
- 0.3 m
- Cable sheath colour
- Grey
- Material cable sheath
- TPE-U(PUR)
- Type of mounting
- Clamped in C-slot, Inserted into the slot lengthwise
- Tightening torque
- 0.1 Nm
- Mounting position
- Any
- Product weight
- 5 g
- Housing colour
- Black
- Material housing
- Brass, nickel-plated, PPS, TPE-U(PU), High-alloy stainless steel
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 70 °C
- Degree of protection
- IP65, IP67
- Insulation voltage
- 50 V
- Immunity to surge
- 0.8 kV
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Pollution degree
- 3
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.0766 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568013790
- MPN 173212
Product Documentation
Document preview: SME-10-SL-LED-24 — Festo product documentation
More from Festo
Festo
Festo LFMA-1-D-MAXI Micro filter
162649
Festo
Festo NPQR-DK-G18-Q10 Push-in fitting
8087695
Festo
Festo DSNU-10-80-P-A ISO cylinder
19187
Festo
Festo DGSL-16-100-P1A Mini slide
543997
Festo
Festo CPV18-DZPR Separator plate
184543
Festo
Festo DSNU-20-60-PPS-A ISO cylinder
1908302
Festo
Festo ADN-63-15-A-P-A Compact cylinder
536333
Festo

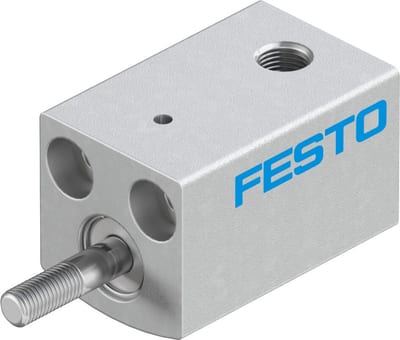

Festo AEVC-4-5-A-P Short-stroke cylinder
