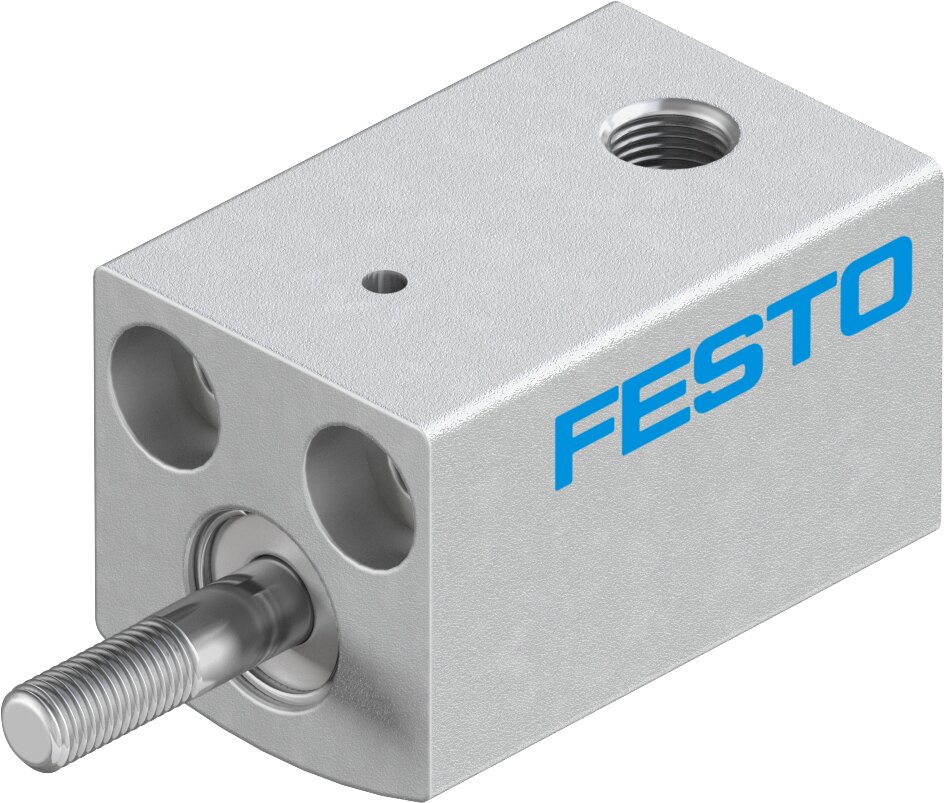

Festo AEVC-4-5-A-P Short-stroke cylinder

Festo AEVC-4-5-A-P — Short-stroke cylinder, pneumatic cylinders. stroke 5 mm; piston diameter 4 mm; operating pressure 0.25. 0.8 MPa (2.5. 8 bar; 36.25. 116 psi).

Manufacturer part number (MPN)

188053

Type code

AEVC-4-5-A-P

EAN / GTIN

4052568076412

Product category

Pneumatic cylinders

Lifecycle status

Phase-out

Stroke

5 mm

Piston diameter

4 mm

Spring return force with retracted piston rod

1 N

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Mode of operation

Pushing, Single-acting

Design

Piston, Piston rod

Position detection

None

Symbol

00991730

Operating pressure

0.25 ... 0.8 MPa (2.5 ... 8 bar; 36.25 ... 116 psi)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Ambient temperature

-20 ... 80 °C

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

4.9 N

Moving mass

0.2 g

Product weight

4.3 g

Type of mounting

With through-hole, with accessories

Pneumatic connection

M3

Material cover

Wrought aluminium alloy, anodised

Material seals

HNBR, NBR

Material housing

anodised

Material piston rod

Wrought aluminium alloy, anodised

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M3

Carbon footprint (EPD)

0.0814 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568076412
• MPN 188053
