Festo

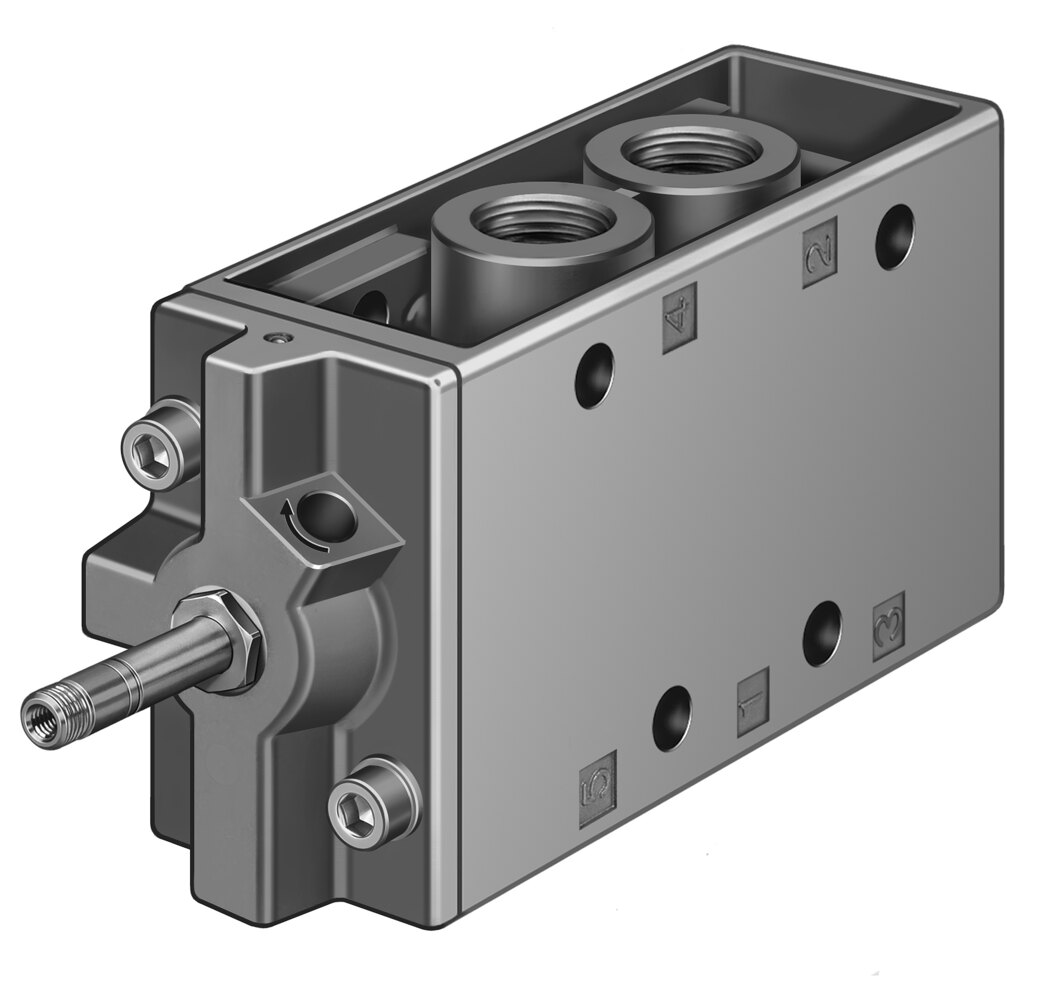

Festo MFH-5-1/2-S Solenoid valve
Part number35547EAN / GTIN4052568115807HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5-1/2-S — Solenoid valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure 0. 0.8 MPa (0. 8 bar); nominal size 14 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 35547
- Type code
- MFH-5-1/2-S
- EAN / GTIN
- 4052568115807
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Construction width
- 52 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 3700 l/min
- pneumatic working port
- G1/2
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0 ... 0.8 MPa (0 ... 8 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65
- Nominal size
- 14 mm
- Grid dimension
- 69 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Non-reversible
- Symbol
- 00991024
- lap
- Underlap
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- b value
- 0.32
- Switching time off
- 150 ms
- Switching time on
- 21 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 1135 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail, with through-hole
- Pilot exhaust port 84
- M5
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Pneumatic connection, port 3
- G1/2
- Pneumatic connection, port 4
- G1/2
- Pneumatic connection, port 5
- G1/2
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/2"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 13.2467 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568115807
- MPN 35547
Product Documentation
Document preview: MFH-5-1/2-S — Festo product documentation
More from Festo
Festo

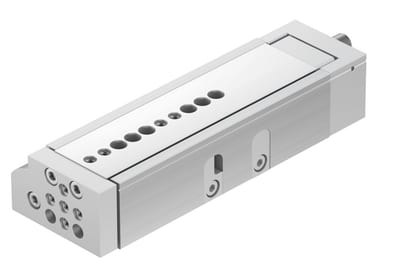

Festo DGSL-16-80-EA Mini slide
