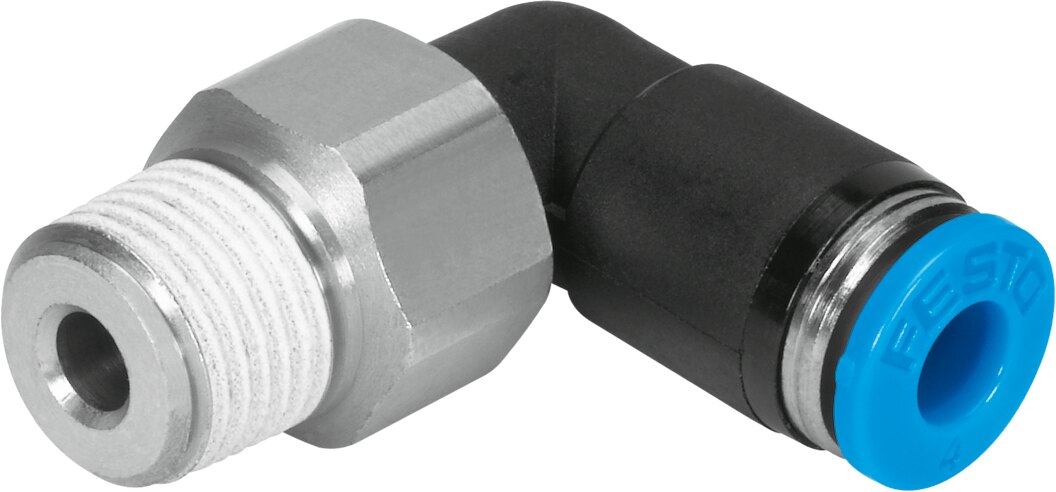

Festo QSRL-1/8-4 Push-in L-fitting, rotatable
Part number153410EAN / GTIN4052568034467HS code7412.20
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSRL-1/8-4 — Push-in L-fitting, rotatable, push-in fittings. nominal size 1.8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 153410
- Type code
- QSRL-1/8-4
- EAN / GTIN
- 4052568034467
- Product category
- Push-in fittings
- Size
- Standard
- Nominal size
- 1.8 mm
- Tubing insertion depth
- 15 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- L-shape
- Function fittings - Design
- Push-pull principle
- Size of pack
- 1
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)
- Max. rotational speed
- 500 1/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 ... 60 °C
- Max. radial torque
- 0.006 Nm
- Nominal torque
- 7 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 15 g
- Type of mounting
- External hex SW12
- Pneumatic connection, port 1
- Male thread R1/8
- Pneumatic connection, port 2
- For tubing outside diameter of 4 mm
- Colour of release ring
- Blue
- Material screwed plug
- Nickel-plated brass
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 4 mm
- Thread
- 1/8"
- Carbon footprint (EPD)
- 0.7250 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568034467
- MPN 153410
Product Documentation
Document preview: QSRL-1/8-4 — Festo product documentation
More from Festo
Festo
Festo DGST-16-30-PA Mini slide
8085132
Festo
Festo AEVC Short stroke cylinder - 6mm, M3, 10mm, AEVC-6-10-A-P
188063
Festo
Festo YSRA-12-C End stop limiter
150934
Festo
Festo ADVUL-32-25-P-A Compact cylinder
156878
Festo
Festo ADVUL-63-40-P-A Compact cylinder
156908
Festo
Festo VABM-L1-10HW-G18-5-GR Manifold rail
573435
Festo
Festo ADN-100-10-I-P-A Compact cylinder
536384
Festo
Festo AEVUZ-12-10-A-P-A Compact cylinder
157253
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
