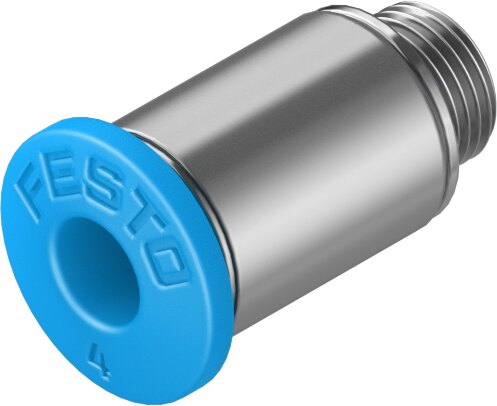

Festo QSM-M5-4-I Push-in fitting

Festo QSM-M5-4-I — Push-in fitting, push-in fittings. nominal size 2.5 mm.

Manufacturer part number (MPN)

153315

Type code

QSM-M5-4-I

EAN / GTIN

4052568033781

Product category

Push-in fittings

Size

Mini

Nominal size

2.5 mm

Tubing insertion depth

11.5 mm

Type of seal on screwed plug

Sealing ring

Mounting position

Any

Design

Straight design

Push-in fittings - Design

Push-pull principle

Size of pack

10

Operating pressure complete temperature range

-0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)

Temperature-dependent operating pressure

-0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)

Maritime classification

See certificate

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Ambient temperature

-10 ... 80 °C

Nominal torque

1.33 Nm

Tolerance for nominal tightening torque

±20%

Product weight

3 g

Type of mounting

Internal hex A/F2.5

Pneumatic connection, port 1

Male thread M5

Pneumatic connection, port 2

For tubing outside diameter of 4 mm

Colour of release ring

Blue

Material housing

Brass, nickel-plated

Material release ring

POM

Material tubing seal

NBR

Material tubing clamp component

High-alloy stainless steel

Product type

Insertions C

Product group

Pneumatics

Outer hose diameter

4 mm

Thread diameter

5 mm

Temperature min

-10 °C

Temperature max

80 °C

Sales unit

Pack

Carbon footprint (EPD)

0.0233 kg CO2e per pcs

Country of origin

Japan

Customs tariff code (EU CN)

74122000

HS code

7412.20

HS Code

7412.20
