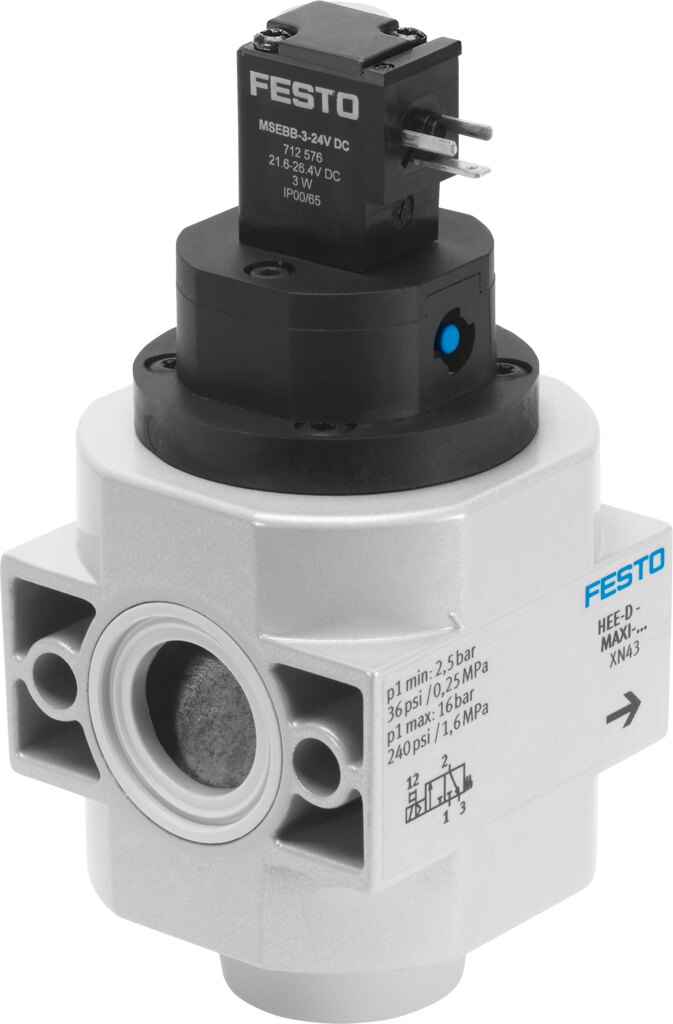

Festo HEE-D-MAXI-24 On/off valve

Festo HEE-D-MAXI-24 — On/off valve, compressed air preparation. valve function 3/2-way, single solenoid, closed; operating pressure 0.25. 1.6 MPa (2.5. 16 bar).

Manufacturer part number (MPN)

172962

Type code

HEE-D-MAXI-24

EAN / GTIN

4052568006532

Product category

Compressed air preparation

Lifecycle status

Phase-out

Design

Piston gate valve

Type of actuation

Electrical

Sealing principle

Soft

Exhaust-air function

Cannot be throttled

Manual override

Detenting

Type of reset

Mechanical spring

Type of piloting

Piloted

Symbol

00991008

Valve function

3/2-way, single solenoid, closed

Operating pressure

0.25 ... 1.6 MPa (2.5 ... 16 bar)

lap

Overlap

Duty cycle

100%

Characteristic coil data

24 V DC: 2.5 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-10 ... 60 °C

Ambient temperature

-10 ... 60 °C

Type of mounting

Inline installation, with accessories

Mounting position

Any

Flow direction

Non-reversible

Product weight

800 g

Pneumatic connection, port 3

G3/8

Air purity class at output

Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Electrical connection

Type C, Plug, To DIN EN 175301-803

Signal status display

With accessories

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic Valve Manual

Product group

Pneumatics

Carbon footprint (EPD)

13.5422 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
