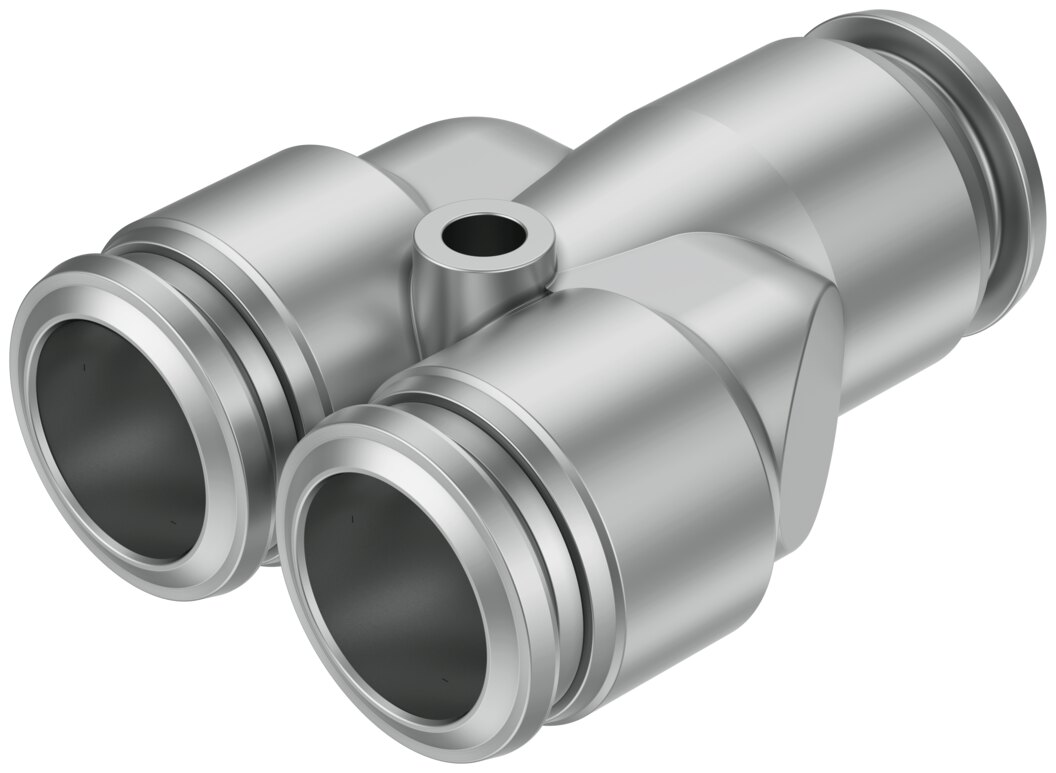

Festo NPQR-Y-Q16-E Push-in Y-connector
Pricing
Request a quote
We reply within 24 hours
Overview
Festo NPQR-Y-Q16-E Push-in Y-connector (part number 8085728) is listed under Pneumatics / Fittings & Tubing. Type code: NPQR-Y-Q16-E; Product category: Push-in fittings; Size: Standard; Tubing insertion depth: 23.5 mm; Mounting position: Any; Design: Y-shape.
Technical Specifications
- Manufacturer part number (MPN)
- 8085728
- Type code
- NPQR-Y-Q16-E
- EAN / GTIN
- 4052568553401
- Product category
- Push-in fittings
- Size
- Standard
- Tubing insertion depth
- 23.5 mm
- Mounting position
- Any
- Design
- Y-shape
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 1
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 1.2 MPa (-0.95 ... 12 bar; -13.775 ... 174 psi)
- Certificate issuing authority
- NSF C0556009
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 4 - Very high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity, NSF/ANSI 169
- Ambient temperature
- -5 ... 150 °C
- Product weight
- 140.9 g
- Pneumatic connection, port 1
- For tubing outer diameter of 16 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 16 mm
- Colour of release ring
- Silver
- Material housing
- High-alloy stainless steel
- Guard ring material
- High-alloy stainless steel
- Material release ring
- High-alloy stainless steel
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PPSU
- Product type
- Collectors Push-in
- Product group
- Pneumatics
- Outer hose diameter
- 16 mm
- Carbon footprint (EPD)
- 1.1445 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072980
- HS code
- 7307.29
Standards & Compliance
- HS Code
- 7307.29
Cross References
- EAN 4052568553401
- MPN 8085728
Product Documentation
