Festo ADVU-20-40-A-P-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVU-20-40-A-P-A — Compact cylinder, pneumatic cylinders. stroke 40 mm; piston diameter 20 mm; operating pressure 0.1. 1 MPa (1. 10 bar; 14.5. 145 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 156606
- Type code
- ADVU-20-40-A-P-A
- EAN / GTIN
- 4052568118617
- Product category
- Pneumatic cylinders
- Stroke
- 40 mm
- Piston diameter
- 20 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Male thread
- Design
- Piston, Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar; 14.5 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.14 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 141 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 188 N
- Moving mass for 0 mm stroke
- 20 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight for 0 mm stroke
- 149 g
- Additional weight per 10 mm stroke
- 23 g
- Type of mounting
- With through-hole, with accessories
- Pneumatic connection
- M5
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR, TPE-U(PU)
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 5.3020 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568118617
- MPN 156606
Product Documentation
More from Festo
Festo
Festo HE-2-1/2-QS-12 Shut-off valve
153474
Festo
Festo ADVC Short stroke cylinder - 20mm, M5, 15mm, ADVC-20-15-I-P-A
188142
Festo
Festo VUVG-BK14-B52-T-F-1R8L-S Solenoid valve
8042576
Festo
Festo DSNU-20-320-PPS-A ISO cylinder
559281
Festo
Festo CPE24-M1H-5/3ES-QS-12 Solenoid valve
4052568138165

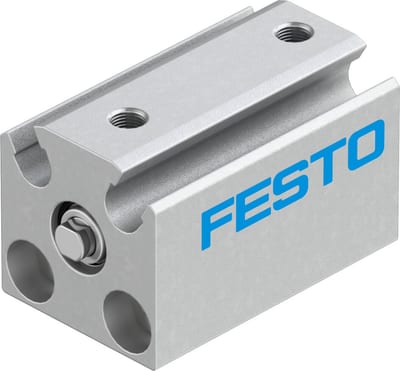

Festo
Festo ADVC Short stroke cylinder - 6mm, M3, 5mm, ADVC-6-5-P-A
526901
Festo
Festo FRC-1/8-D-O-MINI-A Service unit
162746

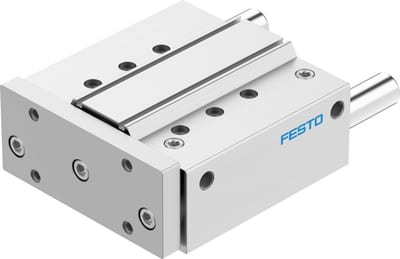

Festo
