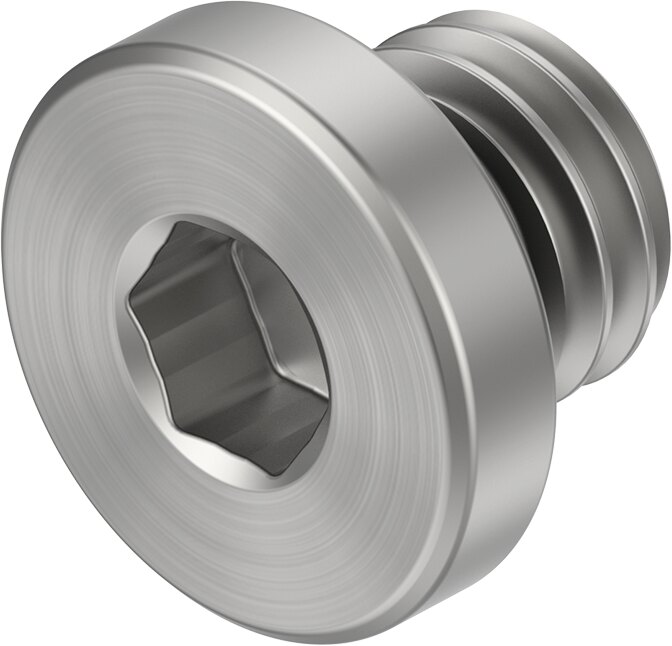

Festo NPQR-BK Closure screw brass, nickel-plated metric - 5mm, NPQR-BK-M5
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQR-BK Closure screw brass, nickel-plated metric. End caps and plugs (Technique / Pneumatics / Pneumatic Fittings). Principal data: thread diameter 5 mm, supplier type designation NPQR-BK-M5. Supplied under manufacturer part number 8104803, EAN 4052568553432, HS code 7307.29, country of origin Italy.
Technical Specifications
- Size
- Standard
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Plug screw
- Size of pack
- 1
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 1.6 MPa (-0.95 ... 16 bar) (-13.775 ... 232 psi)
- Note on operating pressure
- Water: max. 0.7 MPa at 0 - 80 °C
- Certificate issuing authority
- NSF C0556009
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Element installed statically, no meaningful evaluation possible according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity; NSF/ANSI 169
- Ambient temperature
- -20 ... 150 °C
- Nominal torque
- 1 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 3.2 g
- Pneumatic connection, port 1
- Male thread M5
- Material housing
- High-alloy stainless steel
- Material thread seal
- Fluoro rubber
- EAN / GTIN
- 4052568553432
- Festo type code
- NPQR-BK-M5
- Festo order number
- 8104803
- Product type
- End caps and plugs
- Product group
- Pneumatics
- Thread diameter
- 5 mm
- Carbon footprint (EPD)
- 0.0261 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072910
- HS code
- 7307.29
- Manufacturer part number
- 8104803
Standards & Compliance
- HS Code
- 7307.29
Cross References
- EAN 4052568553432
- MPN 8104803
