Festo ADN Compact cylinder double-acting - 80mm, 12mm, 1/8, 20mm, ADN-80-20-I-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description

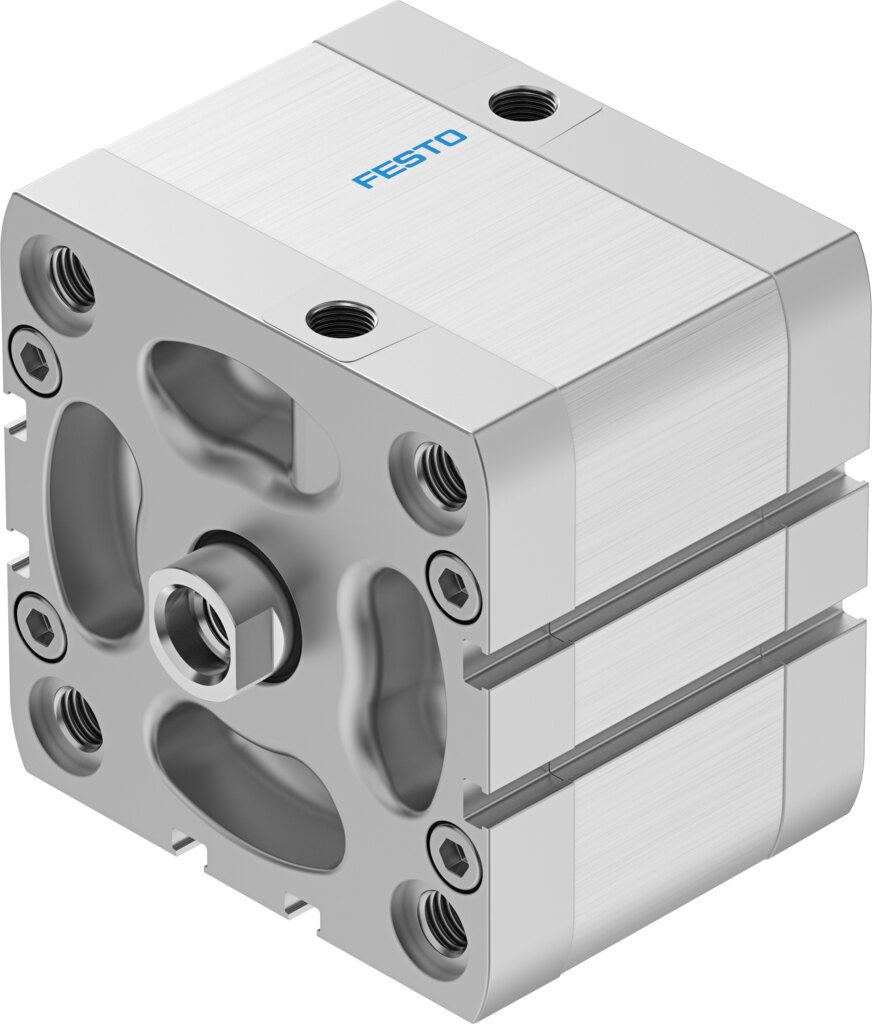

Festo ADN Compact cylinder double-acting. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 80 mm, piston diameter 12 mm, port size 1/8, stroke rate 20 mm. Supplied under manufacturer part number 536365, EAN 4052568171568, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M12
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1 MPa (0.6 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.8 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 2827 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 3016 N
- Moving mass
- 338 g
- Product weight
- 1157 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Coated die-cast aluminium
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568171568
- Festo type code
- ADN-80-20-I-P-A
- Festo order number
- 536365
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- 1/8
- Temperature max
- 80 °C
- Temperature min
- -20 °C
- Working pressure min
- 0.6 bar
- Working pressure max
- 10 bar
- Carbon footprint (EPD)
- 20.7869 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 536365
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568171568
- MPN 536365
