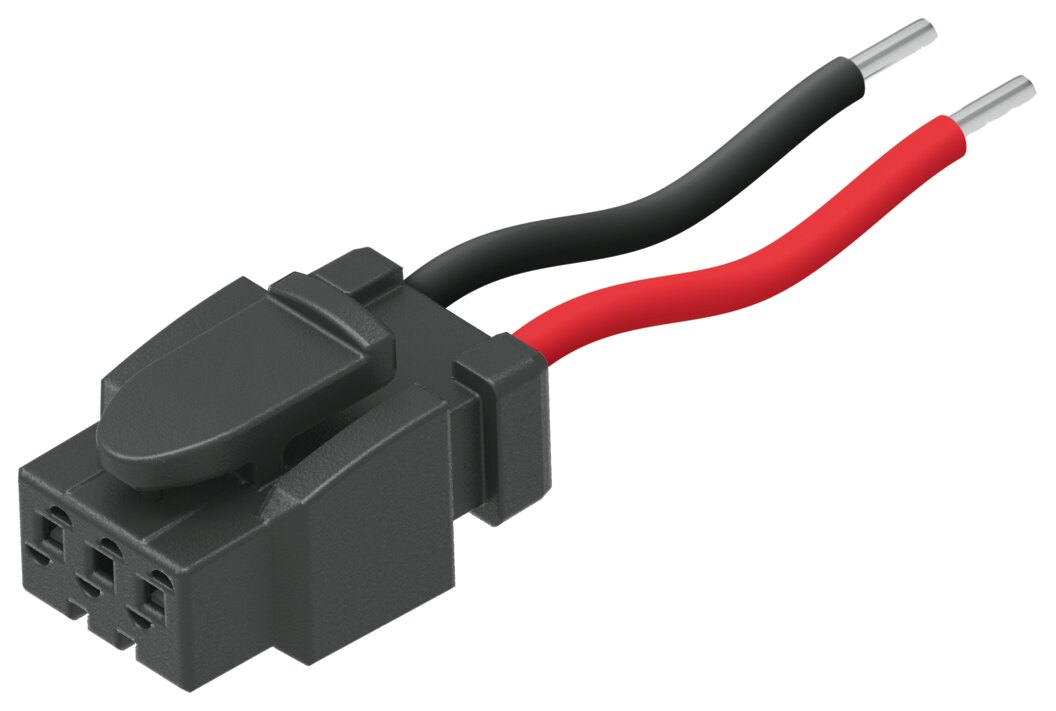

Festo NEBV-H1G2-KN-2.5-N-LE2 Plug socket with cable
Part number566656EAN / GTIN4052568057336HS code8544.42
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NEBV-H1G2-KN-2.5-N-LE2 — Plug socket with cable, connecting cables for valves.
Technical Specifications
- Manufacturer part number (MPN)
- 566656
- Type code
- NEBV-H1G2-KN-2.5-N-LE2
- EAN / GTIN
- 4052568057336
- Product category
- Connecting cables for valves
- Cable designation
- Without inscription label holder
- Mounting position
- Any
- Product weight
- 17 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connector system
- Plug pattern H
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, used connections/cores
- 2
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 1, connection pattern
- 00995622
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- 2x single cores
- Electrical connection 2, connector system
- Open end
- Electrical connection 2, number of connections/cores
- 2
- Electrical connection 2, used connections/cores
- 2
- Operational voltage range DC
- 0 ... 60 V
- Current rating at 40° C
- 3 A
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Cable diameter
- 1.3 mm
- Cable structure
- 2 x 0.14 mm²
- Nominal cross section conductor
- 0.14 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP40
- Ambient temperature
- -5 ... 60 °C
- CE mark (see declaration of conformity)
- In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material housing
- POM
- Housing colour
- Black
- Material electrical contact
- Copper alloy, Tin-plated
- Material insulating sheath
- PVC
- Product type
- Pneumatic coils/cable connectors
- Product group
- Pneumatics
- Temperature min
- -5 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 0.1120 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85444290
- HS code
- 8544.42
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4052568057336
- MPN 566656
Product Documentation
Document preview: NEBV-H1G2-KN-2.5-N-LE2 — Festo product documentation
More from Festo
Festo
Festo AEVUZ-25-20-A-P-A Compact cylinder
157270
Festo
Festo CLR-32-20-R-P-A-B-K11-R8 Linear/swivel clamp
535490
Festo

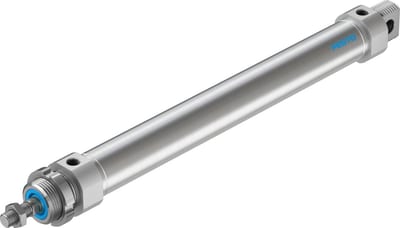

Festo DSNU-32-250-P-A Round cylinder
195988
Festo

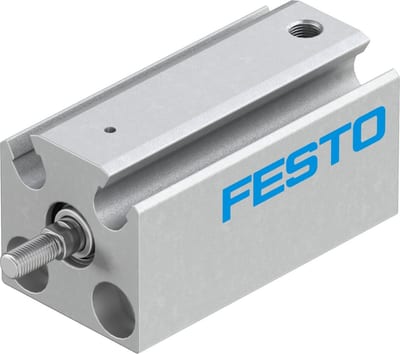

Festo AEVC Short stroke cylinder - 6mm, M3, 10mm, AEVC-6-10-A-P-A
