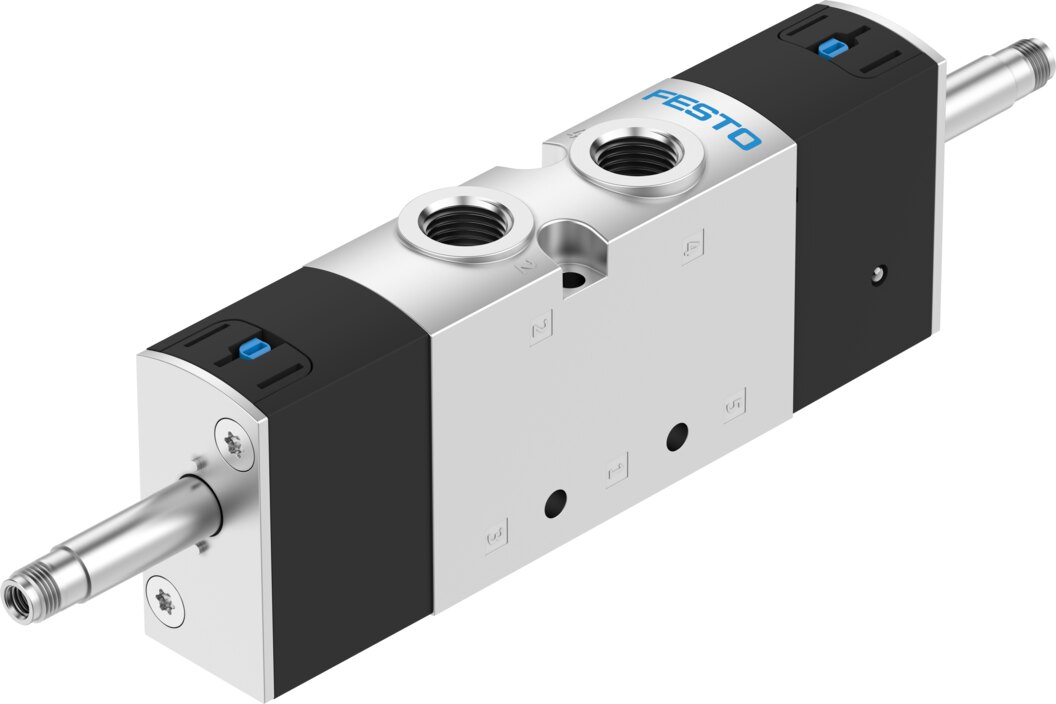

Festo VUVS-L25-P53E-MD-G14-FN Solenoid valve

Festo VUVS-L25-P53E-MD-G14-FN — Solenoid valve, universal directional control valves. valve function 5/3 exhausted; operating pressure 0.25. 0.8 MPa (2.5. 8 bar).

Manufacturer part number (MPN)

8192990 Type code: VUVS-L25-P53E-MD-G14-FN EAN / GTIN: 4052568641979 Product category: Universal directional control valves Valve function: 5/3 exhausted Type of actuation: Electrical Valve size: 26.5 mm Standard nominal flow rate (standardised to DIN 1343): 1000 l/min pneumatic working port: G1/4 Operating pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) Design: Piston gate valve Type of reset: Mechanical spring Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Manual override: Detenting Type of piloting: Piloted Pilot air supply: Internal Flow direction: Non-reversible Symbol: 00991036 lap: Overlap Pilot pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) b value: 0.4 C value: 4.3 l/sbar Switching time off: 156 ms Switching time on: 34 ms Switching time reversal: 102 ms Explosion protection: The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1 Media temperature: -10 ... 60 °C Pilot medium: Compressed air to ISO 8573-1:2010 [7:4:4] Ambient temperature: -10 ... 60 °C Product weight: 324 g Breather connection: Not ducted Pneumatic connection, port 1: G1/4 Pneumatic connection, port 2: G1/4 Pneumatic connection, port 3: G1/4 Pneumatic connection, port 4: G1/4 Pneumatic connection, port 5: G1/4 material seals: HNBR, NBR material housing: Die-cast aluminium, painted material piston slide: Wrought aluminium alloy material screws: Galvanised steel Product type: Pneumatic solenoid valves Product group: Pneumatics Thread: G1/4" Activation: El Return: mechanical spring Carbon footprint (EPD): 6.7689 kg CO2e per pcs Country of origin: China Customs tariff code (EU CN): 84812090 HS code: 8481.20

HS Code

8481.20

• EAN 4052568641979
• MPN 8192990
