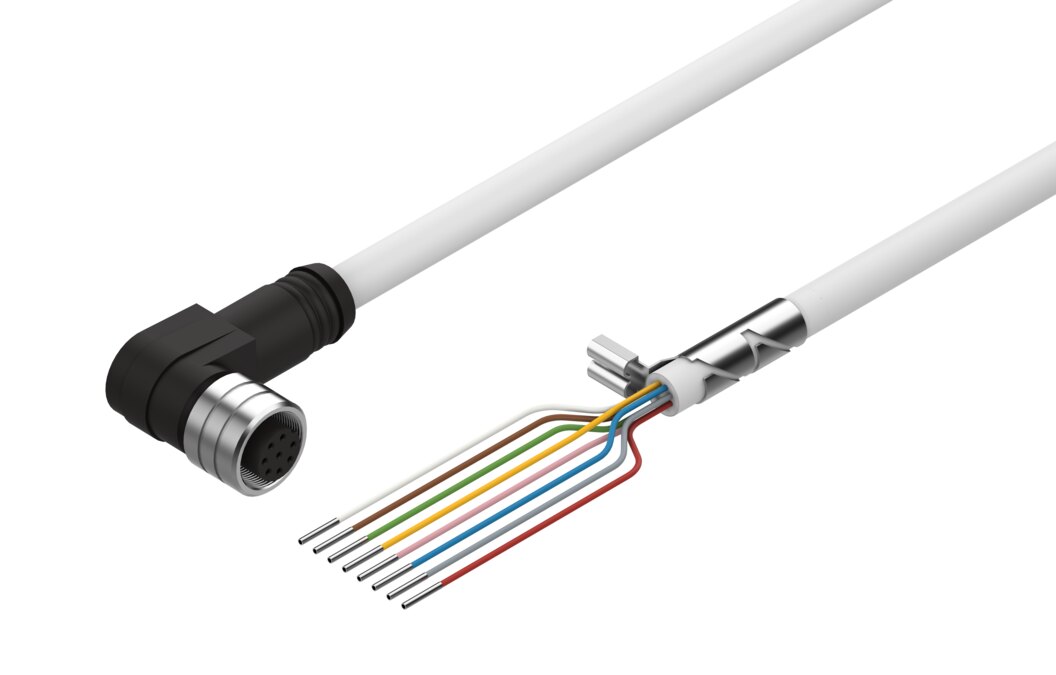

Festo NEBM Encoder cable - 2.5M, NEBM-M12W8-E-2.5-LE8
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NEBM Encoder cable. Pneumatic reed contacts/cables/brackets (Technique / Pneumatics / Pneumatic Cylinders). Principal data: cable length 2.5 m, supplier type designation NEBM-M12W8-E-2.5-LE8. Supplied under manufacturer part number 1451675, EAN 4052568106102, HS code 8544.42, country of origin Germany.
Technical Specifications
- Cable designation
- Without inscription label holder
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connector system
- M12x1, A-coded to EN 61076-2-101
- Electrical connection 1, number of connections/cores
- 8
- Electrical connection 1, used connections/cores
- 8
- Electrical connection 1, connection pattern
- 00992265
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connector system
- Open end
- Electrical connection 2, number of connections/cores
- 8
- Electrical connection 2, used connections/cores
- 8
- Operational voltage range DC
- 0 ... 30 V
- Nominal operating voltage DC
- 24 V
- Operational voltage range AC
- 0 ... 30 V
- Nominal operating voltage AC
- 24 V
- Shielding
- Yes
- Cable length
- 2.5 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, moving cable
- 68 mm
- Cable diameter
- 6.8 mm
- Cable structure
- 4 x 2 x 0.14 mm²
- Nominal cross section conductor
- 0.14 mm²
- Wire ends
- Wire ferrule
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Ambient temperature
- -40 ... 80 °C
- Ambient temperature with moving cable
- -5 ... 80 °C
- CE mark (see declaration of conformity)
- In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Material cable sheath
- TPE-U(PUR)
- Cable sheath colour
- Grey
- EAN / GTIN
- 4052568106102
- Festo type code
- NEBM-M12W8-E-2.5-LE8
- Festo order number
- 1451675
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Temperature max
- 80 °C
- Temperature min
- -40 °C
- Carbon footprint (EPD)
- 1.0432 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85444290
- HS code
- 8544.42
- Manufacturer part number
- 1451675
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4052568106102
- MPN 1451675
Product Documentation
More from Festo
Festo
Festo VUVG-L10 Solenoid Valve - M7", El, Spring, VUVG-L10-M52-RT-M7-1R8L
574221
Festo
Festo QSF Straight fitting push-in nickel-plated brass BSPP socket - 12mm, 1/4", QSF-1/4-12-B
190651
Festo
Festo SZF Swivel flange - 63, SZF-63
161824
Festo

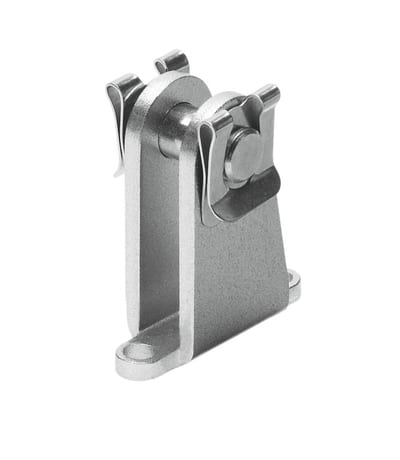

Festo LZF Bearing block - 12/18, LZF-12/18
163962
Festo

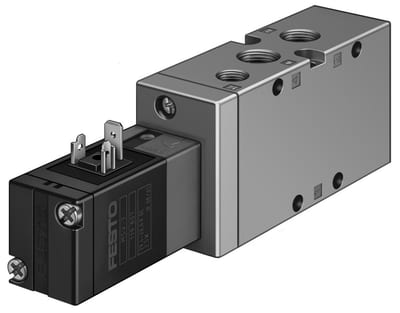

Festo MVH Solenoid Valve - MVH-5-1/4-B
