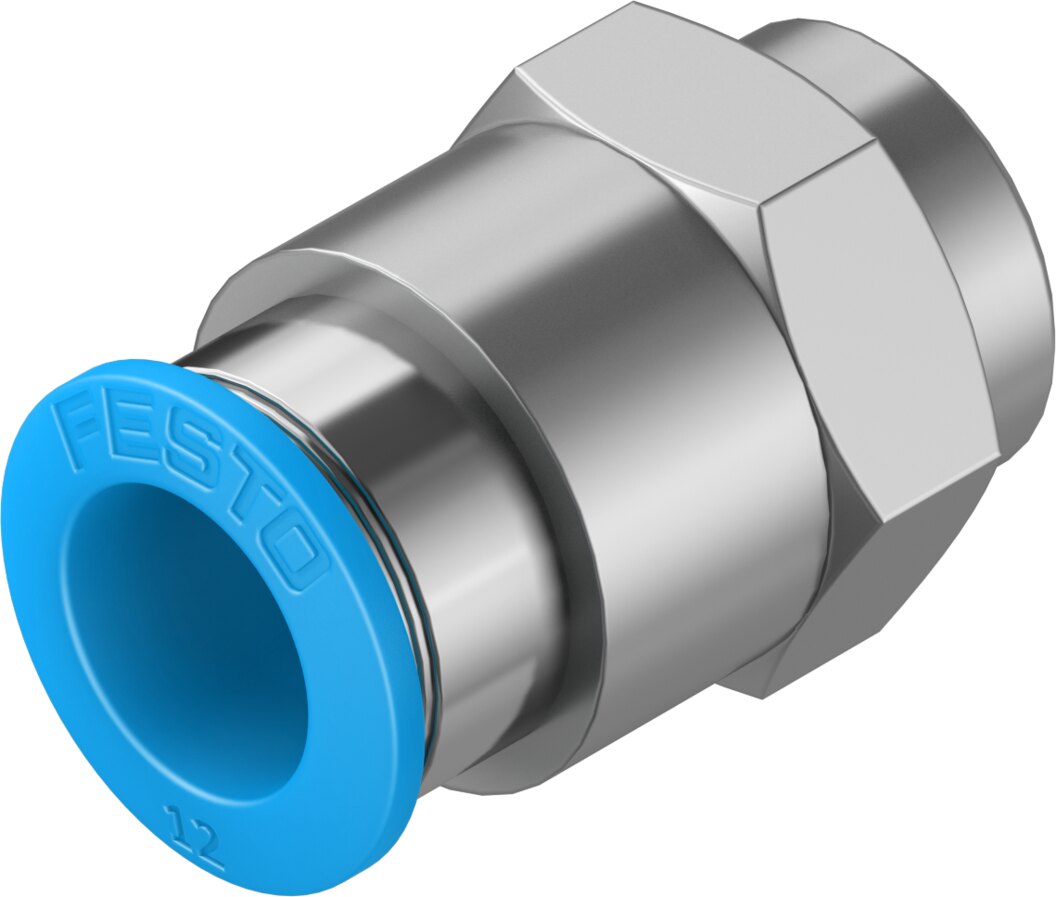

Festo QSF Straight fitting push-in nickel-plated brass BSPP socket - 12mm, 1/4", QSF-1/4-12-B
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSF Straight fitting push-in nickel-plated brass BSPP socket. Insertions C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 12 mm, thread 1/4", supplier type designation QSF-1/4-12-B. Supplied under manufacturer part number 190651, EAN 4052568042868, HS code 7412.20, country of origin Taiwan.
Technical Specifications
- Size
- Standard
- Nominal size
- 11 mm
- Tubing insertion depth
- 23.3 mm
- Type of seal on screwed plug
- Coating
- Mounting position
- Any
- Design
- Straight design (Push-pull principle)
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at max. 50°C
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 44 g
- Type of mounting
- External hex SW21
- Pneumatic connection, port 1
- Female thread G1/4
- Pneumatic connection, port 2
- For tubing outer diameter of 12 mm
- Colour of release ring
- Blue
- Material housing
- Brass, nickel-plated
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568042868
- Festo type code
- QSF-1/4-12-B
- Festo order number
- 190651
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 12 mm
- Thread
- 1/4"
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.3184 kg CO2e per pcs
- Country of origin
- Taiwan
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 190651
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568042868
- MPN 190651
