Festo

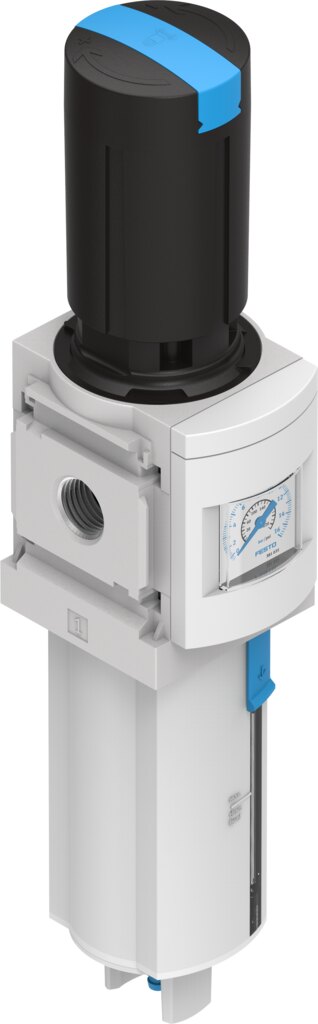

Festo MS6-LFR-1/2-D7-EUM-AS Filter regulator
Part number529192EAN / GTIN4052568163730HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS6-LFR-1/2-D7-EUM-AS — Filter regulator, ms series. operating pressure 0.08. 2 MPa (0.8. 20 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 529192
- Type code
- MS6-LFR-1/2-D7-EUM-AS
- EAN / GTIN
- 4052568163730
- Product category
- MS series
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent, can be closed with accessories
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Manual, rotating
- Design
- Filter regulator with pressure gauge
- Max. condensate volume
- 38 ml
- Controller function
- Output pressure constant, with secondary exhausting
- Bowl guard
- Integrated as metal bowl
- Degree of condensate separation
- 75 %
- Symbol
- 00991589
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.08 ... 2 MPa (0.8 ... 20 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.025 MPa (0.25 bar; 3.625 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 4500 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [-:4:-], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Pore size
- 40 µm
- Product weight
- 1087 g
- Type of mounting
- Either:, Front panel mounting, Inline installation, with accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material control panel
- PA, POM
- Material seals
- NBR
- Material filter
- Packaging unit
- Material housing
- Die-cast aluminium
- Material membrane
- NBR
- Material bowl
- Wrought aluminium alloy
- Material separating plate
- POM
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Filter element
- 40 My
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 16.0532 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568163730
- MPN 529192
Product Documentation
Document preview: MS6-LFR-1/2-D7-EUM-AS — Festo product documentation
