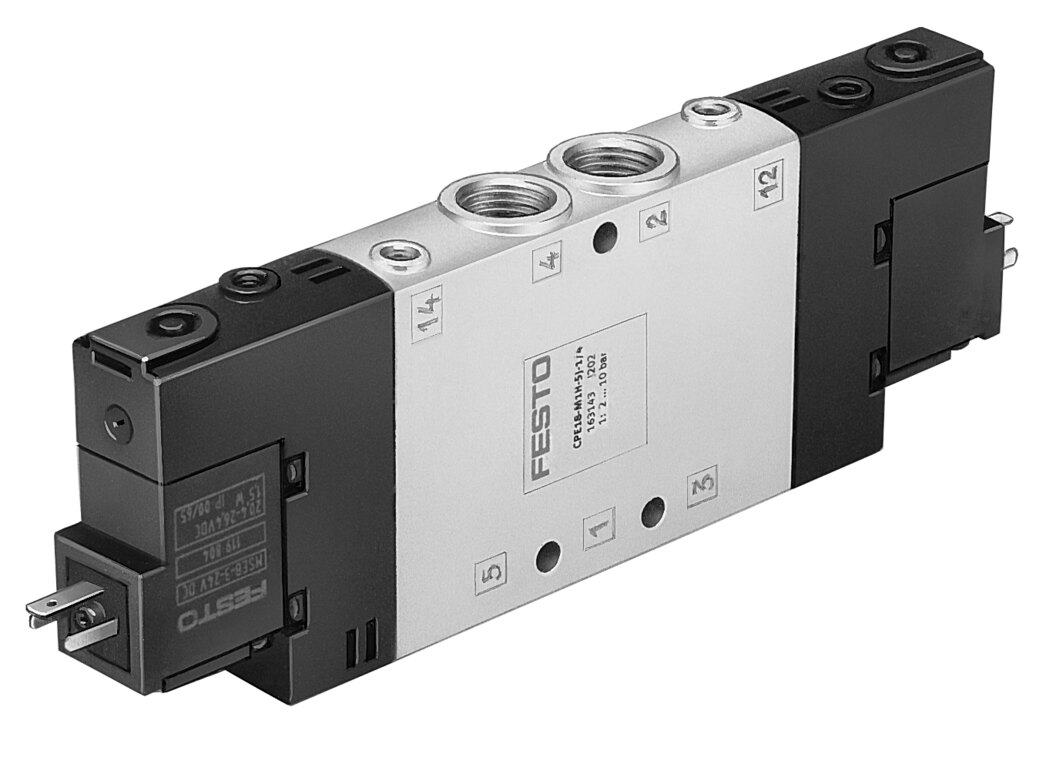

Festo CPE18-M3H-5JS-1/4 Solenoid valve

Festo CPE18-M3H-5JS-1/4 — Solenoid valve, valves and valve terminals. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 8 mm.

Manufacturer part number (MPN)

163791

Type code

CPE18-M3H-5JS-1/4

EAN / GTIN

4052568135478

Product category

Valves and valve terminals

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Construction width

18 mm

Standard nominal flow rate (standardised to DIN 1343)

1500 l/min

pneumatic working port

G1/4

Operating voltage

230V AC

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Design

Piston gate valve

Approval

c UL us - Recognised (Oil)

Maritime classification

See certificate

CE mark (see declaration of conformity)

To EU Low Voltage Directive

UKCA marking (see declaration of conformity)

To UK regulations for electrical equipment

Certificate issuing authority

UL MH19482

Degree of protection

IP65, with plug socket, To IEC 60529

Nominal size

8 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting via accessory, Non-detenting

Type of piloting

Piloted

Pilot air supply

External

Flow direction

Reversible

Symbol

00991016

Valve position code

Label holder

lap

Overlap

Pilot pressure

0.2 ... 1 MPa (2 ... 10 bar)

Switching time reversal

13 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

3300 µs

Max. negative test pulse with 1 signal

3100 µs

Characteristic coil data

230 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA

Permissible voltage fluctuations

-15% / +10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 50 °C

Product weight

270 g

Electrical connection

Type C

Type of mounting

With through-hole

Pilot exhaust port 82

M5

Pilot exhaust port 84

M5

Pilot air port 12

M5

Pilot air port 14

M5

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Pneumatic connection, port 3

G1/4

Pneumatic connection, port 4

G1/4

Pneumatic connection, port 5

G1/4

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

G1/4"

Activation

El

Return

Air

Carbon footprint (EPD)

5.4752 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
