Festo
Festo LRS-1/2-D-O-MAXI Pressure regulator
Part number194659EAN / GTIN4052568153953HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRS-1/2-D-O-MAXI — Pressure regulator, compressed air preparation. operating pressure 0. 1.6 MPa (0. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 194659
- Type code
- LRS-1/2-D-O-MAXI
- EAN / GTIN
- 4052568153953
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Any
- Design
- Piloted piston regulator
- Controller function
- Output pressure constant, with secondary exhausting
- Symbol
- 00991559
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/4
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.04 MPa (0.4 bar; 5.8 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 10500 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 815 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material sub-base
- Die-cast zinc
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 12 bar
- Carbon footprint (EPD)
- 9.7952 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568153953
- MPN 194659
Product Documentation
Document preview: LRS-1/2-D-O-MAXI — Festo product documentation
More from Festo
Festo

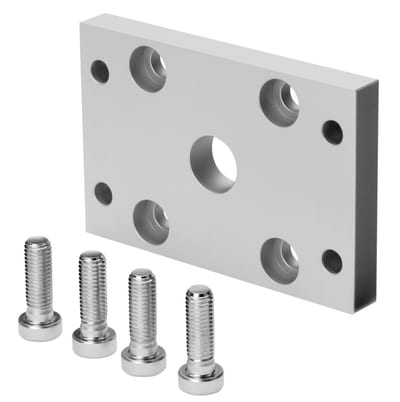

Festo FUA-25 Flange mounting
157301
Festo
Festo CPV18-M1H-5LS-1/4 Solenoid valve
163190
Festo
Festo CPE18-M3H-5/3BS-QS-10 Solenoid valve
4052568138721
Festo
Festo VABM-L1-14W-G14-5-GR Manifold rail
573501
No image
Festo
Festo DSR-25-180-P Semi-rotary drive
4052568002466
Festo

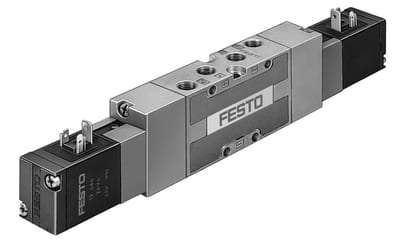

Festo JMVH-5-1/8-B Solenoid valve
