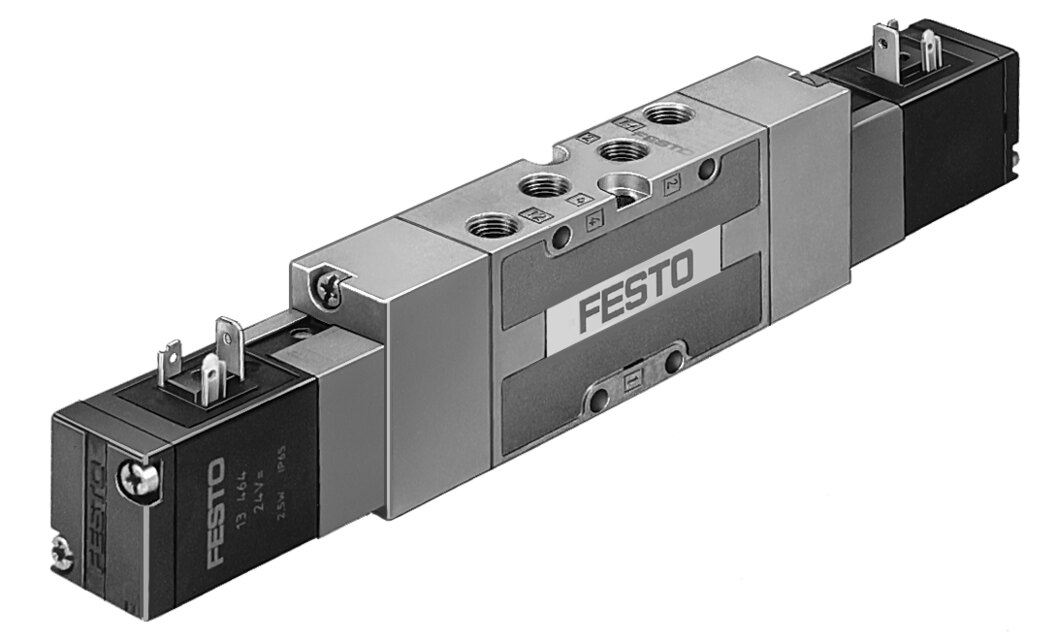

Festo JMVH-5-1/8-B Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMVH-5-1/8-B — Solenoid valve, valves and valve terminals. valve function 5/2-way, double solenoid; operating pressure 0.2. 1 MPa (2. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 30475
- Type code
- JMVH-5-1/8-B
- EAN / GTIN
- 4052568113605
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Design
- Piston gate valve
- Nominal size
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991013
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Switching time reversal
- 18 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- 24 V DC: 2.5 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 560 g
- Type of mounting
- On PR rail, with through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 14.7644 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568113605
- MPN 30475
Product Documentation
More from Festo
Festo

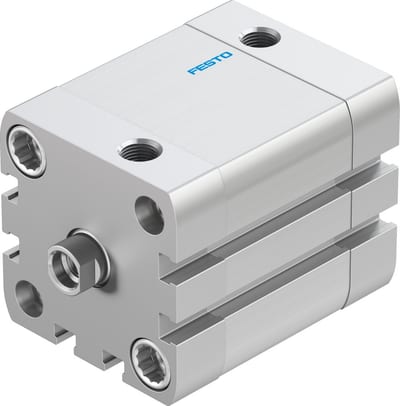

Festo ADN-40-25-I-P-A Compact cylinder
536303
Festo

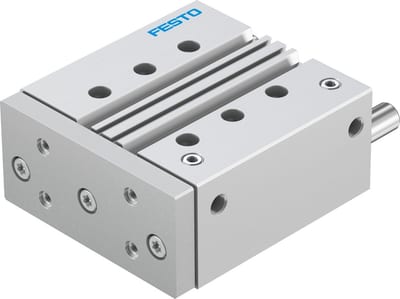

Festo DFM-63-100-P-A-KF Guided drive
170956
Festo

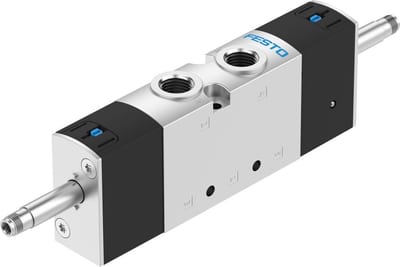

Festo VUVS-L25-B52-D-N14-FN Solenoid valve
8192997
Festo

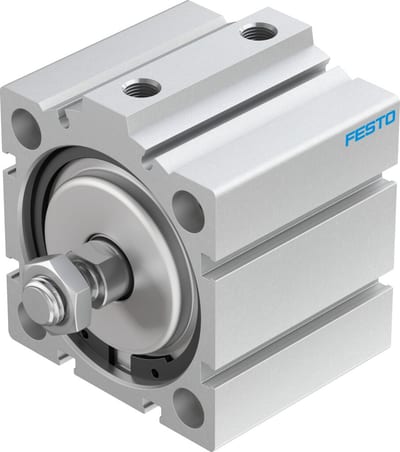

Festo ADVC Short stroke cylinder - 63mm, G1/8, 25mm, ADVC-63-25-A-P
188299
Festo
Festo DSRL-25-180-P-FW Semi-rotary drive
30656
Festo

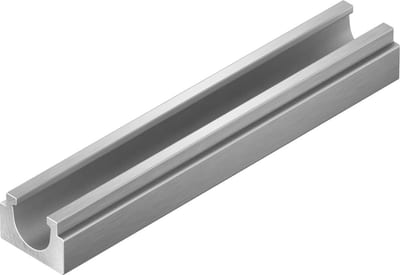

Festo HGP-SL10-25 Sensor rail
535585
Festo

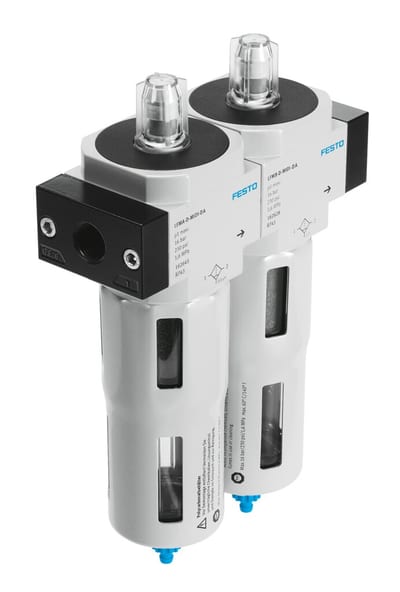

Festo LFMBA-1-D-MAXI-DA-A Filter combination
532882
Festo

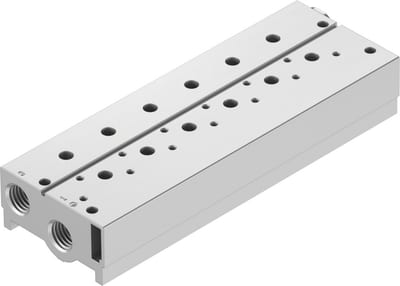

Festo VABM-B10-25S-G38-6-P3 Manifold block
