Festo DSRL-25-180-P-FW Semi-rotary drive
Part number30656EAN / GTIN4052568003722HS code8412.39
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSRL-25-180-P-FW — Semi-rotary drive, pneumatic cylinders. operating pressure 0.15. 0.8 MPa (1.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 30656
- Type code
- DSRL-25-180-P-FW
- EAN / GTIN
- 4052568003722
- Product category
- Pneumatic cylinders
- Size
- 25
- Cushioning angle
- 1.8 deg
- Rotation angle adjustment range
- 0 ... 180 deg
- Swivel angle
- 0 ... 180 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Vane
- Position detection
- None
- Symbol
- 00991265
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)
- 3 Hz
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 ... 60 °C
- Max. axial force
- 50 N
- Max. radial force
- 120 N
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 5 Nm
- Product weight
- 500 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material covering
- Reinforced PA
- Material drive shaft
- Steel, nickel-plated
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 25 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 11.2291 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568003722
- MPN 30656
Product Documentation
Document preview: DSRL-25-180-P-FW — Festo product documentation
More from Festo
Festo
Festo HGP-SL10-25 Sensor rail
535585
Festo
Festo LFMBA-1-D-MAXI-DA-A Filter combination
532882
Festo
Festo VABM-B10-25S-G38-6-P3 Manifold block
8026301
Festo

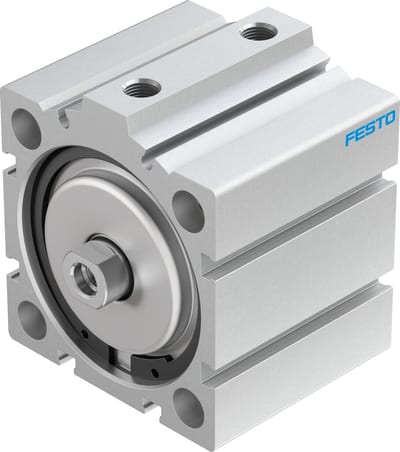

Festo ADVC Short stroke cylinder - 63mm, G1/8, 25mm, ADVC-63-25-I-P
188291
Festo

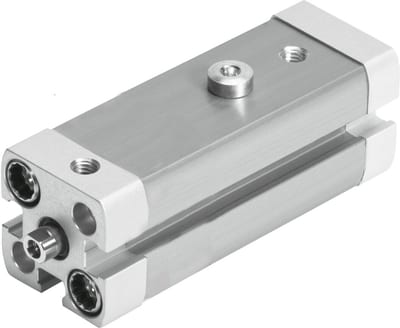

Festo CLR-12-20-R-P-A Linear/swivel clamp
