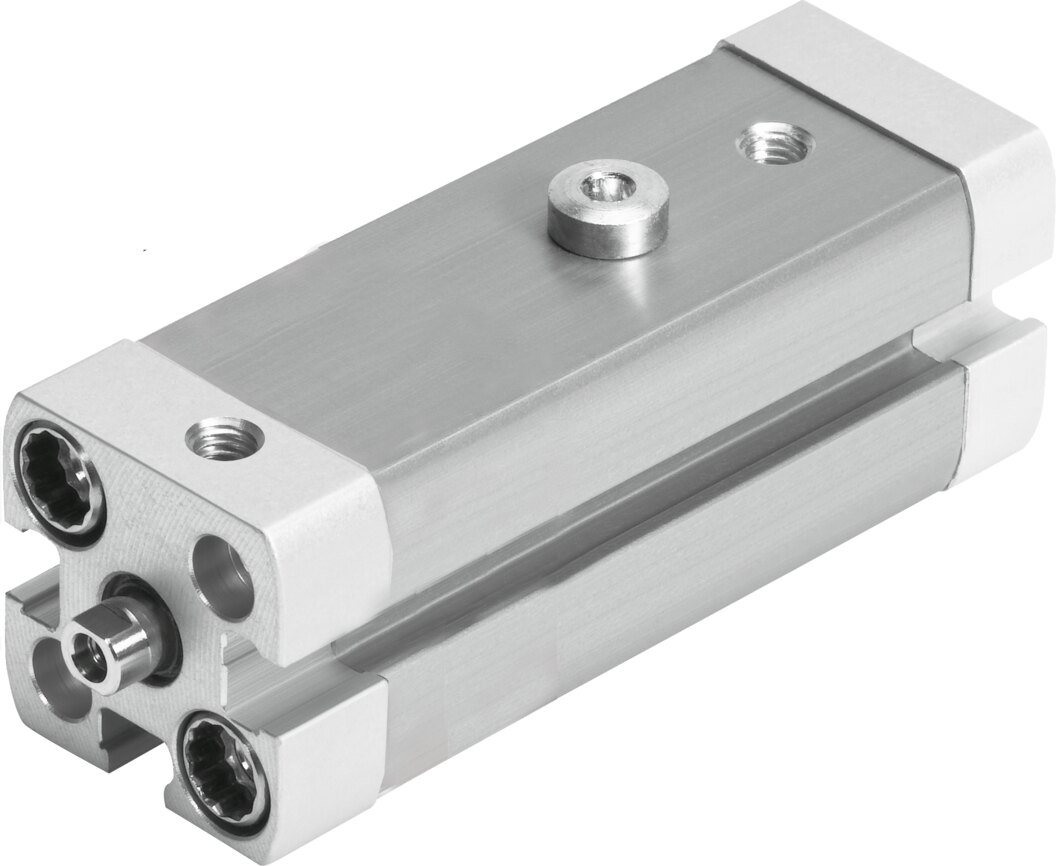

Festo CLR-12-20-R-P-A Linear/swivel clamp

Festo CLR-12-20-R-P-A — Linear/swivel clamp, swing clamp cylinders. piston diameter 12 mm; operating pressure 2. 10 bar.

Manufacturer part number (MPN)

535433

Type code

CLR-12-20-R-P-A

EAN / GTIN

4052568015855

Product category

Swing clamp cylinders

Total stroke

29 mm

Piston diameter

12 mm

Piston rod thread

M3

Swivel angle

90 deg +/-4 deg

Clamping stroke

20 mm

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Swivel direction

right

Symbol

00991217

Operating pressure

2 ... 10 bar

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B2-L

Ambient temperature

-10 ... 80 °C

Effective clamping force at 0.2 MPa (2 bar, 29 psi)

12 N

Effective clamping force at 0.4 MPa (4 bar, 58 psi)

23 N

Effective clamping force at 0.6 MPa (6 bar, 87 psi)

34 N

Max. tightening torque Clamping finger screw

1.2 Nm

Theoretical clamping force at 0.6 MPa (6 bar, 87 psi)

51 N

Product weight

160 g

Type of mounting

With through-hole, with female thread, with accessories

Pneumatic connection

M5

Material collar screws

Steel, Galvanised

Material cover

Wrought aluminium alloy, coated

Material seals

NBR, TPE-U(PU)

Material housing

Smooth-anodised

Material piston rod

High-alloy stainless steel

Material cylinder barrel

Wrought aluminium alloy, Smooth-anodised

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

M5

Carbon footprint (EPD)

3.5743 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

84799070

HS code

8479.90

HS Code

8479.90

• EAN 4052568015855
• MPN 535433
