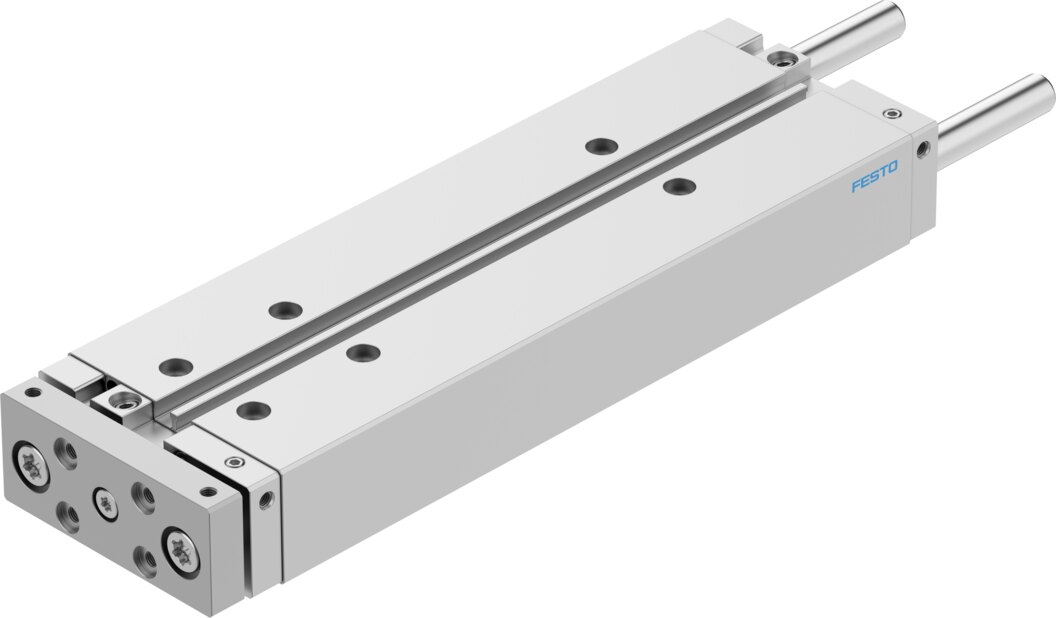

Festo DFM-20-200-B-PPV-A-KF Guided drive
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-20-200-B-PPV-A-KF — Guided drive, drives with guide rods. stroke 200 mm; piston diameter 20 mm; operating pressure 0.2. 1 MPa (2. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 559484
- Type code
- DFM-20-200-B-PPV-A-KF
- EAN / GTIN
- 4052568362782
- Product category
- Drives with guide rods
- Stroke
- 200 mm
- Piston diameter
- 20 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 ... 60 °C
- Impact energy in end positions
- 0.2 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 158 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 188 N
- alternative connections
- See product drawing
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 48.9186 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568362782
- MPN 559484
Product Documentation
More from Festo
Festo
Festo FRC-1/4-D-7-MIDI-A Service unit
186504
Festo
Festo VL/O-3-3/4-EX Pneumatic valve
536031
Festo
Festo VUVG-B14-P53U-ZT-F-1T1L Solenoid valve
573487
Festo

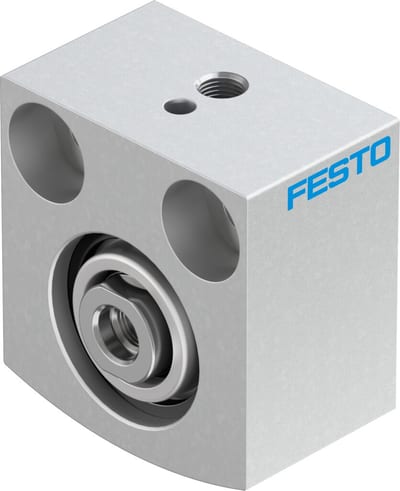

Festo AEVC Short stroke cylinder - 20mm, M5, 5mm, AEVC-20-5-I-P
