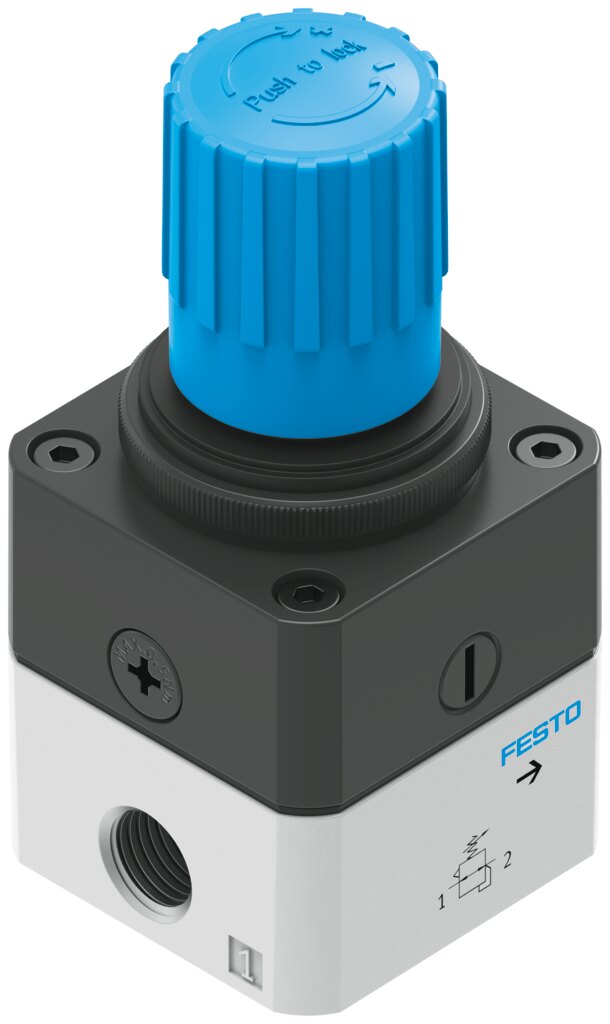

Festo LRP-1/4-0,7 Precision pressure regulator

Festo LRP-1/4-0,7 — Precision pressure regulator, individual devices. operating pressure 0.1. 1.2 MPa (1. 12 bar).

Manufacturer part number (MPN)

159500

Type code

LRP-1/4-0,7

EAN / GTIN

4052568011734

Product category

Individual devices

Actuator lock

Rotary knob with detent

Mounting position

Any

Design

Piloted precision diaphragm control valve

Controller function

Output pressure constant, with secondary exhausting

Symbol

00991540

Pressure gauge (ANALOG) or Pressure display (DIGITAL)

Prepared for G1/8

Operating pressure

0.1 ... 1.2 MPa (1 ... 12 bar)

Pressure regulation range

0.05 ... 0.7 bar

Inlet pressure 1

1 ... 20 bar

Max. pressure hysteresis

0.02 bar

Standard nominal flow rate (standardised to DIN 1343)

800 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-10 ... 60 °C

Ambient temperature

-10 ... 60 °C

Product weight

310 g

Type of mounting

With accessories

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Material seals

NBR

Material housing

Aluminium

Product type

Air treatment

Product group

Pneumatics

Thread

1/4"

Temperature min

-10 °C

Temperature max

60 °C

Carbon footprint (EPD)

6.8969 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84811099

HS code

8481.10

HS Code

8481.10

• EAN 4052568011734
• MPN 159500
