Festo

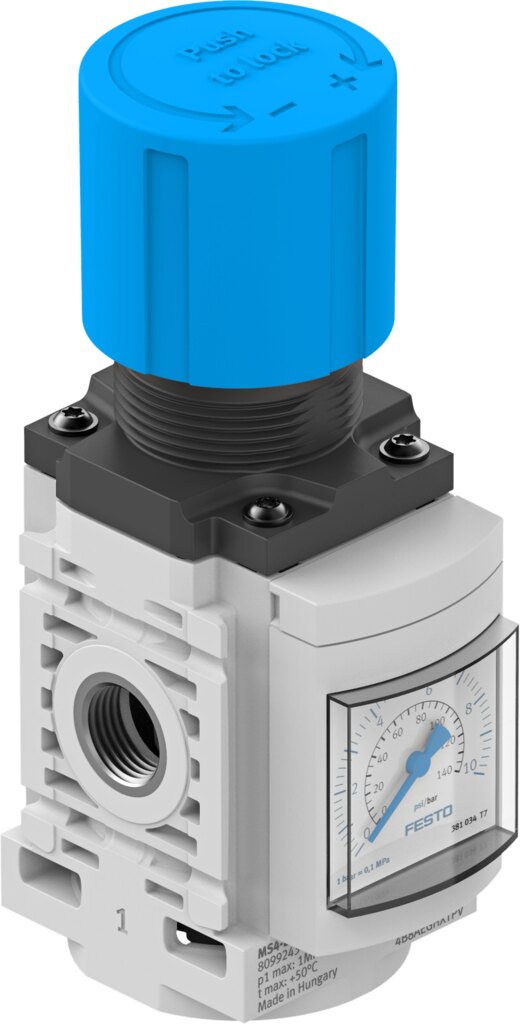

Festo MS4-LR-1/4-D6-AG-BAR-B Pressure regulator
Part number8099358EAN / GTIN4052568465964HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS4-LR-1/4-D6-AG-BAR-B — Pressure regulator, ms basic series. operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8099358
- Type code
- MS4-LR-1/4-D6-AG-BAR-B
- EAN / GTIN
- 4052568465964
- Product category
- MS basic series
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent
- Mounting position
- Any
- Design
- Directly actuated piston regulator
- Controller function
- Output pressure constant, with secondary exhausting, with return flow function
- Symbol
- 00991558
- Displayable units
- bar, psi
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Pressure regulation range
- 0.3 ... 7 bar
- Max. pressure hysteresis
- 0.05 MPa (0.5 bar; 7.25 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 1800 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 7 according to ISO 14644-1
- Storage temperature
- -5 ... 50 °C
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 165 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material underneath cover
- PA
- Material seals
- NBR
- Material rotary knob
- POM
- Material spring
- High-alloy steel, Galvanised steel
- Material housing
- Reinforced PA
- Material valve stem
- POM
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Carbon footprint (EPD)
- 1.8786 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568465964
- MPN 8099358
Product Documentation
Document preview: MS4-LR-1/4-D6-AG-BAR-B — Festo product documentation
