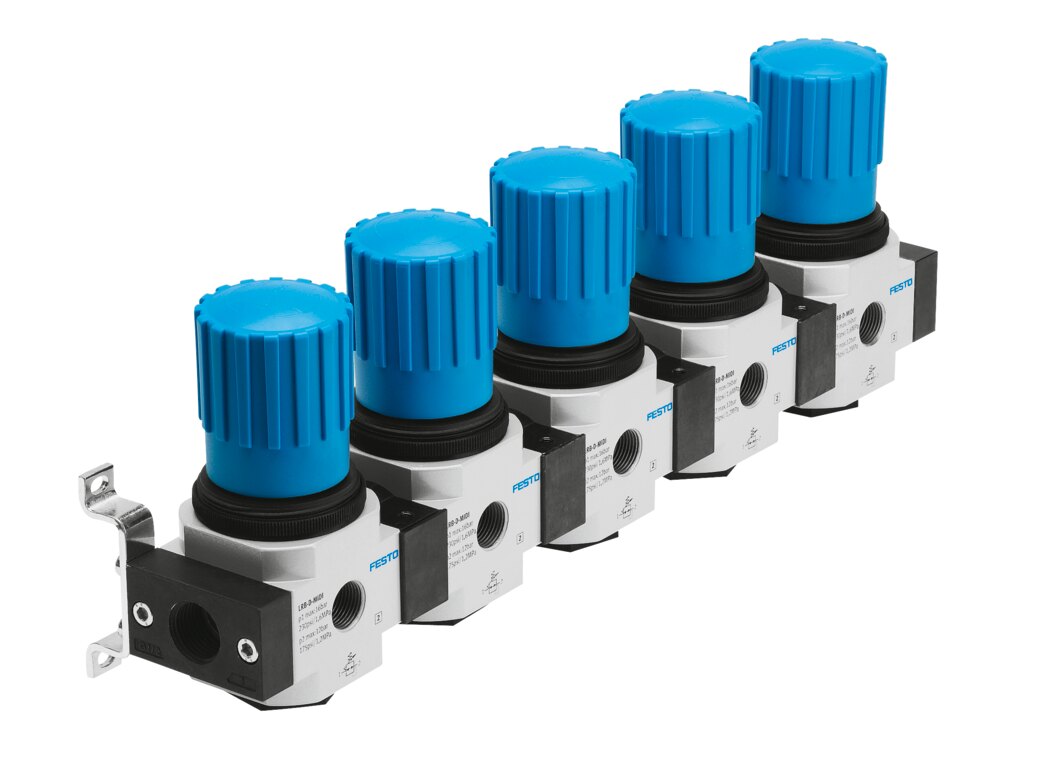

Festo LRB-1/4-D-O-K5-MINI Pressure regulating valve manifold

Festo LRB-1/4-D-O-K5-MINI — Pressure regulating valve manifold, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).

Manufacturer part number (MPN)

529002

Type code

LRB-1/4-D-O-K5-MINI

EAN / GTIN

4052568163365

Product category

Compressed air preparation

Lifecycle status

Phase-out

Size

Mini

Series

D

Actuator lock

Rotary knob with detent

Mounting position

Any

Design

Directly actuated diaphragm regulator, with through compressed air supply

Controller function

Output pressure constant, with primary pressure compensation, with secondary exhausting

Symbol

00995334

Pressure gauge (ANALOG) or Pressure display (DIGITAL)

Prepared for G1/8

Operating pressure

0.1 ... 1.6 MPa (1 ... 16 bar)

Pressure regulation range

0.05 ... 1.2 MPa (0.5 ... 12 bar; 7.25 ... 174 psi)

Max. pressure hysteresis

0.02 MPa (0.2 bar; 2.9 psi)

Standard nominal flow rate (standardised to DIN 1343)

1600 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Air purity class at output

Compressed air to ISO 8573-1:2010 [7:4:4]

Media temperature

-10 ... 60 °C

Ambient temperature

-10 ... 60 °C

Product weight

1860 g

Type of mounting

With accessories

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Material sub-base

Die-cast zinc

Material control panel

PA

Material seals

NBR

Material housing

Die-cast zinc

Product type

Air treatment

Product group

Pneumatics

Thread

1/4"

Press Area

0.5 to 12 bar

Carbon footprint (EPD)

14.8329 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84811099

HS code

8481.10

HS Code

8481.10

• EAN 4052568163365
• MPN 529002
