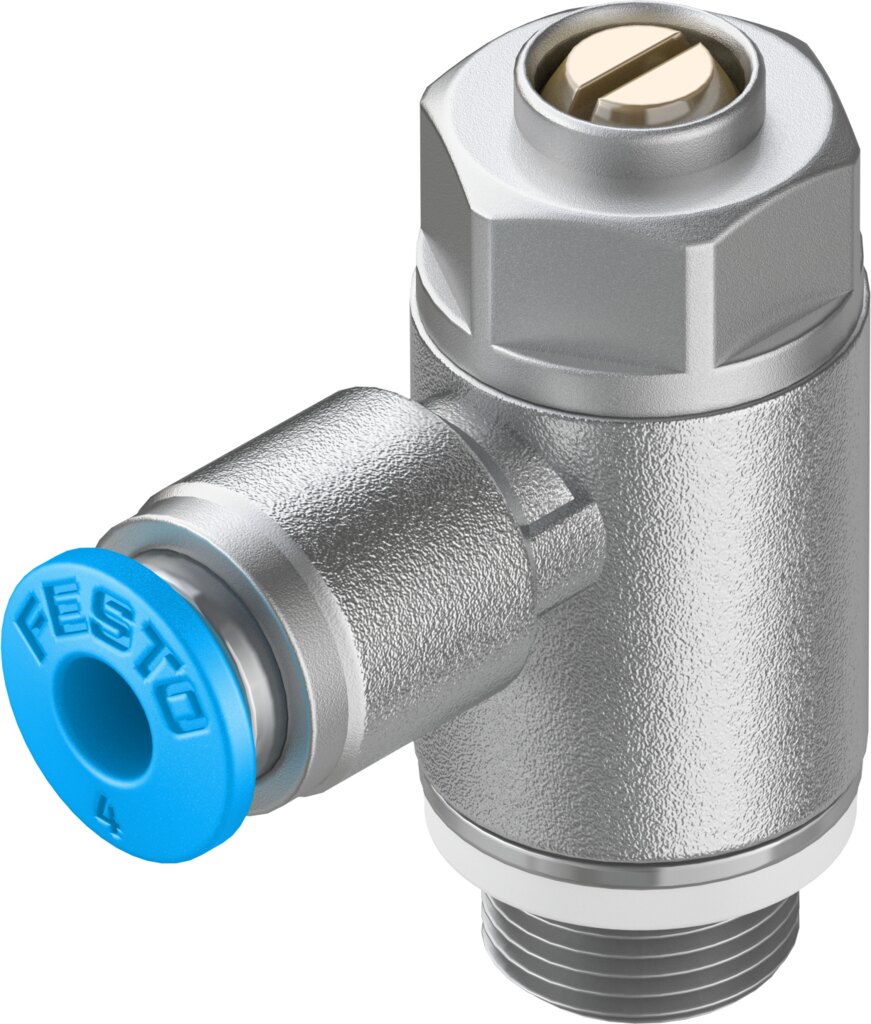

Festo GRLA-1/8-QS-4-D One-way flow control valve

Festo GRLA-1/8-QS-4-D — One-way flow control valve, one-way check valves. valve function Exhaust air one-way flow control function; operating pressure 0.02. 1 MPa (0.2. 10 bar; 2.9. 145 psi).

Manufacturer part number (MPN)

193143

Type code

GRLA-1/8-QS-4-D

EAN / GTIN

4052568043834

Product category

One-way check valves

Valve function

Exhaust air one-way flow control function

Pneumatic connection, port 1

QS-4

Pneumatic connection, port 2

G1/8

Adjustment component

Slotted head screw

Type of mounting

Screw-in, with male thread

Standard nominal flow rate in flow control direction

160 l/min

Standard nominal flow rate in blocked direction

120 ... 190 l/min

Operating pressure

0.02 ... 1 MPa (0.2 ... 10 bar; 2.9 ... 145 psi)

Ambient temperature

-10 ... 60 °C

Maritime classification

See certificate

Mounting position

Any

Symbol

00991452

Operating pressure complete temperature range

0.2 ... 10 bar

Standard flow rate in flow control direction 0.6->0 MPa (6

250 l/min

Standard flow rate in non-return direction 0.6->0 MPa (6->

270 ... 300 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Media temperature

-10 ... 60 °C

Nominal torque

6 Nm

Tolerance for nominal tightening torque

±20%

Product weight

22 g

Material seals

NBR

Material hollow bolt

Wrought aluminium alloy, anodised

Material release ring

POM

Material adjusting screw

Brass

Material swivel fitting

Die-cast zinc

Product type

Pneumatic flow valves

Product group

Pneumatics

Thread

1/8"

Outer hose diameter

4 mm

Temperature min

-10 °C

Temperature max

60 °C

Carbon footprint (EPD)

0.1609 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568043834
• MPN 193143
