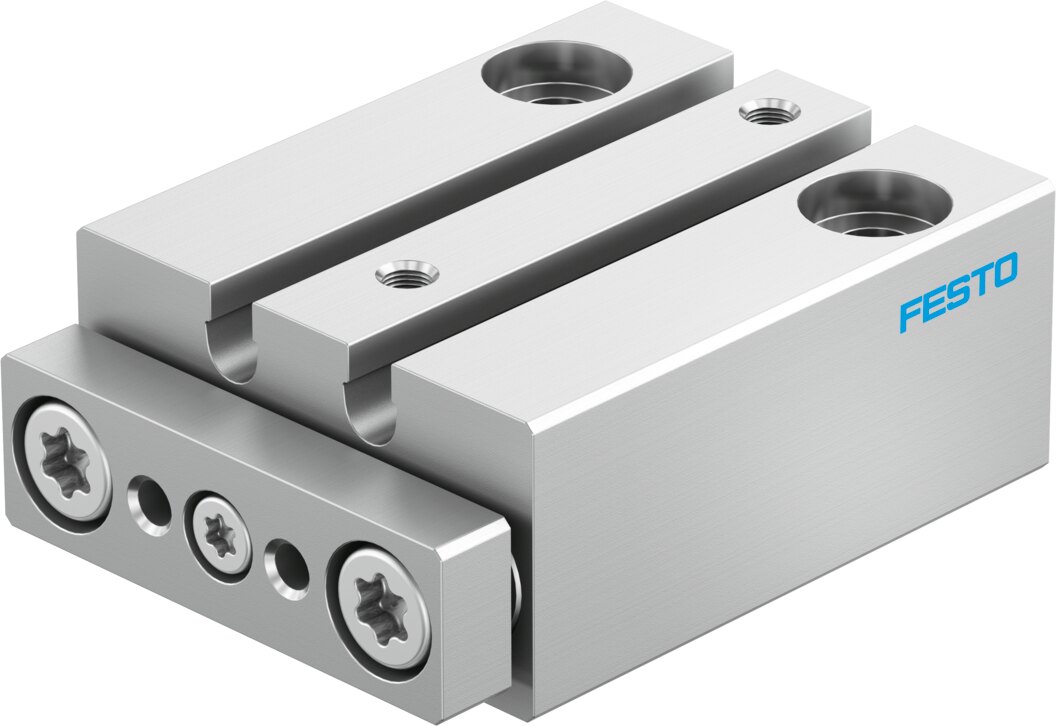

Festo DFM-10-20-P-A-GF Guided drive
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-10-20-P-A-GF — Guided drive, drives with guide rods. stroke 20 mm; piston diameter 10 mm; operating pressure 0.15. 0.8 MPa (1.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 4154799
- Type code
- DFM-10-20-P-A-GF
- EAN / GTIN
- 4052568418076
- Product category
- Drives with guide rods
- Distance from centre of gravity of load to yoke plate xs
- 10 mm
- Stroke
- 20 mm
- Piston diameter
- 10 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Symbol
- 00991737
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. speed
- 1.7 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Impact energy in end positions
- 0.035 J
- Max. permissible torque load Mx as a function of stroke
- 0.034 Nm
- Max. effective load dependent upon stroke at defined dista
- 2 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 40 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 47 N
- Torsional backlash
- 0.1 deg
- Moving mass
- 21 g
- Product weight
- 60.5 g
- Pneumatic connection
- M3
- Material cover
- High-alloy stainless steel
- Material seals
- NBR
- Material dynamic seals
- HNBR
- Material end plate
- Anodised wrought aluminium alloy
- Material guide rod
- High-alloy stainless steel
- Material housing
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 1.1343 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568418076
- MPN 4154799
Product Documentation
