Festo
Festo LFRS-1/2-D-7-MIDI Filter regulator
Part number194760EAN / GTIN4052568154905HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFRS-1/2-D-7-MIDI — Filter regulator, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 194760
- Type code
- LFRS-1/2-D-7-MIDI
- EAN / GTIN
- 4052568154905
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Midi
- Series
- D
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Manual, rotating
- Design
- Filter regulator with pressure gauge
- Max. condensate volume
- 43 ml
- Bowl guard
- Metal bowl guard
- Symbol
- 00991585
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar)
- Pressure regulation range
- 0.5 ... 7 bar
- Max. pressure hysteresis
- 0.2 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 3900 l/min
- Operating medium
- Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:8:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1140 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 7 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 31.1919 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568154905
- MPN 194760
Product Documentation
Document preview: LFRS-1/2-D-7-MIDI — Festo product documentation
More from Festo
Festo
Festo LFMA-D-MINI-DA-A Micro filter
532840
Festo
Festo DNC-50-25-PPV-A ISO cylinder
163369
Festo
Festo DSNU-32-125-P-A Round cylinder
195985
Festo
Festo ADVUL-40-60-P-A Compact cylinder
156892
No image
Festo
Festo RS-3-1/8 Roller lever valve
4052568000189
Festo
Festo LFX-1/4-D-MINI Activated carbon filter
532802
Festo

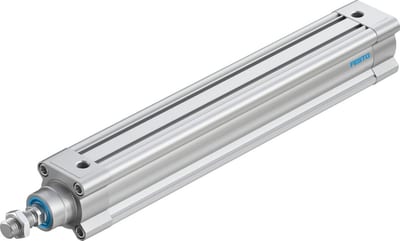

Festo DSBC-50-320-PPVA-N3 ISO cylinder
1366957
Festo
Festo FZF-18 Flange mounting
161812
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
