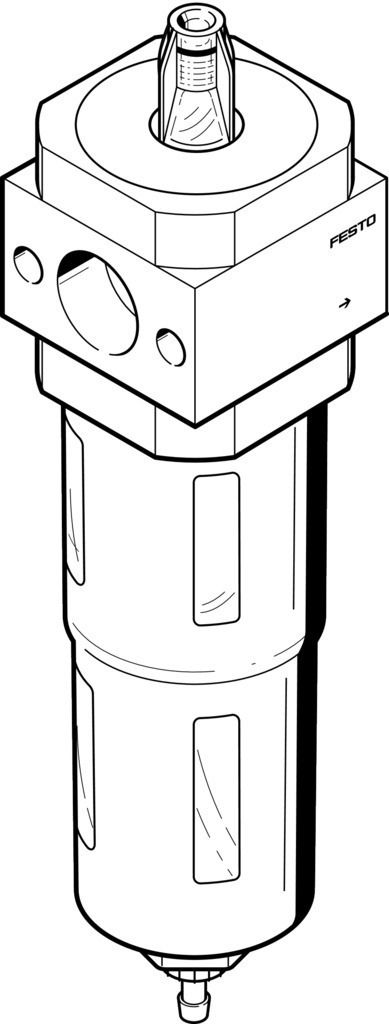

Festo LFMA-D-MINI-DA-A Micro filter

Festo LFMA-D-MINI-DA-A — Micro filter, compressed air preparation. operating pressure 0.2. 1.2 MPa (2. 12 bar).

Manufacturer part number (MPN)

532840

Type code

LFMA-D-MINI-DA-A

EAN / GTIN

4052568165796

Product category

Compressed air preparation

Lifecycle status

Phase-out

Series

D

Size

Mini

Design

Fibre filter

Grade of filtration

0.01 µm

Condensate drain

Fully automatic

Symbol

00991544

Operating pressure

0.2 ... 1.2 MPa (2 ... 12 bar)

Operating medium

Compressed air to ISO 8573-1:2010 [6:4:4], Inert gas

Air purity class at output

Compressed air to ISO 8573-1:2010 [3:4:2], Inert gas

Filter efficiency

99.9999 %

Bowl guard

Metal bowl guard

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

1.5 ... 60 °C

Ambient temperature

-10 ... 60 °C

Filter efficiency, fine particles

99995 %

MPPS

0.05 µm

Filter efficiency MPPS

99.95 %

Residual oil content

0.01 mg/m³

Filter efficiency, oil aerosol

99 %

Differential pressure display

Visual indicator

Type of mounting

With accessories

Mounting position

Vertical +/-5°

Pneumatic connection, port 1

Sub-base

Pneumatic connection, port 2

Sub-base

Material housing

Die-cast zinc

Material filter

Borosilicate fibre

Material bowl

Makrolon®

Product type

Air treatment

Product group

Pneumatics

Filter element

0.01 My

Carbon footprint (EPD)

6.5214 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84213925

HS code

8421.39

HS Code

8421.39

• EAN 4052568165796
• MPN 532840
